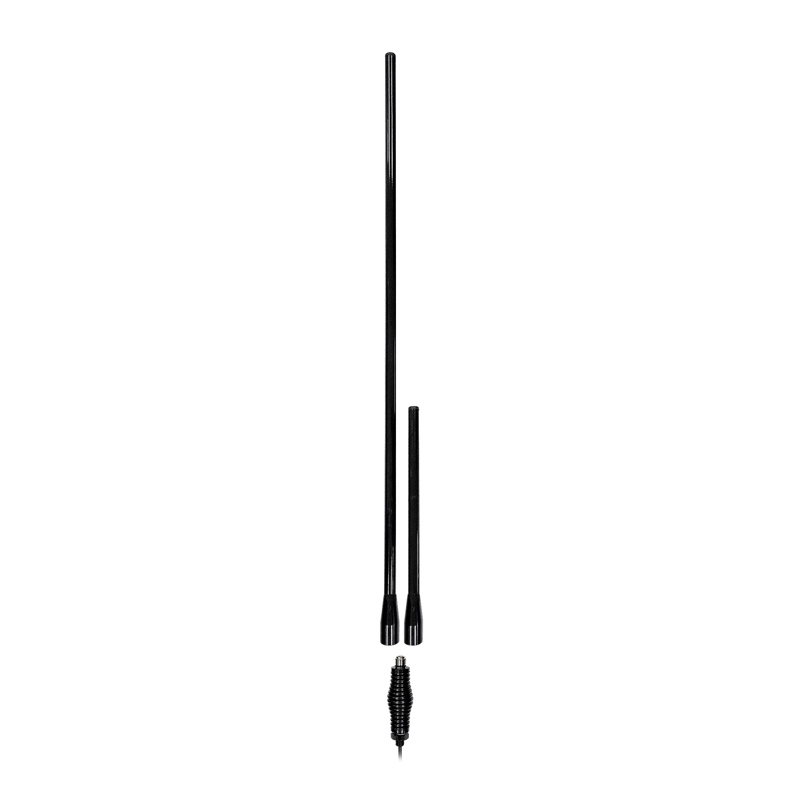

Benelec 4Wheeler UHF 3 & 6.5dBi Mobile Antenna Kit 477MHz
The 02638 4WHEELER is a dual antenna (3dBi/6.5dBi Gain), Ground Independent UHF Mobile Antenna Kit covering the UHF Citizens Radio Band.
- Description
- Specifications
Description
Benelec 4Wheeler UHF Mobile Antenna Kit 3 & 6.5dBi 477MHz
The 02638 antenna kit offer a genuine, respective, 3.0dBi and 6.5dBi of gain (over quarter wave), on the horizon at the designated frequency of operation. Each antenna covers the entire designated band of operation well under 1.5:1 VSWR. The construction of each antenna features a Black Radom, with the antenna detachable from the mounting spring, offering protection against antenna theft.
APPLICATIONS
Mobile coverage for the UHF Citizens Radio Band
 FEATURES
- Plated brass mounting stud
- 0dBi Gain/6.5dBi Gain
- Ground Independent
- Reliable
- Robust
- Durable
- FME adaptor to allow easy installation
- Detachable antenna
TUNING
Factory tuned no further tuning required
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
| Frequency | 477 MHz |
| Gain | 3dBi/6.5dBi (Gain over ¼ wave mounted on ground plane) |
| Impedance | 50 Ω (Nominal) |
| Operating VSWR | <1.5:1 |
| Radiation Pattern | Omni Directional |
| E Plane Beamwidth | 3dBi = 55 Deg, 6.5dBi = 20 deg |
| Tuned Bandwidth | 3dBi = 20 MHz 6.5dBi = 10 MHz |
| Length | 3dBi antenna = 495mm, 6.5dBi antenna = 1170mm (Antenna length includes spring) |
| Weight | 3dBi antenna = 180g, 6.5dBi antenna = 370g |
| Termination | 16mm stud mount on the spring assembly 5m RG58 cable terminated with FMEs + UHF Male Adaptor |
