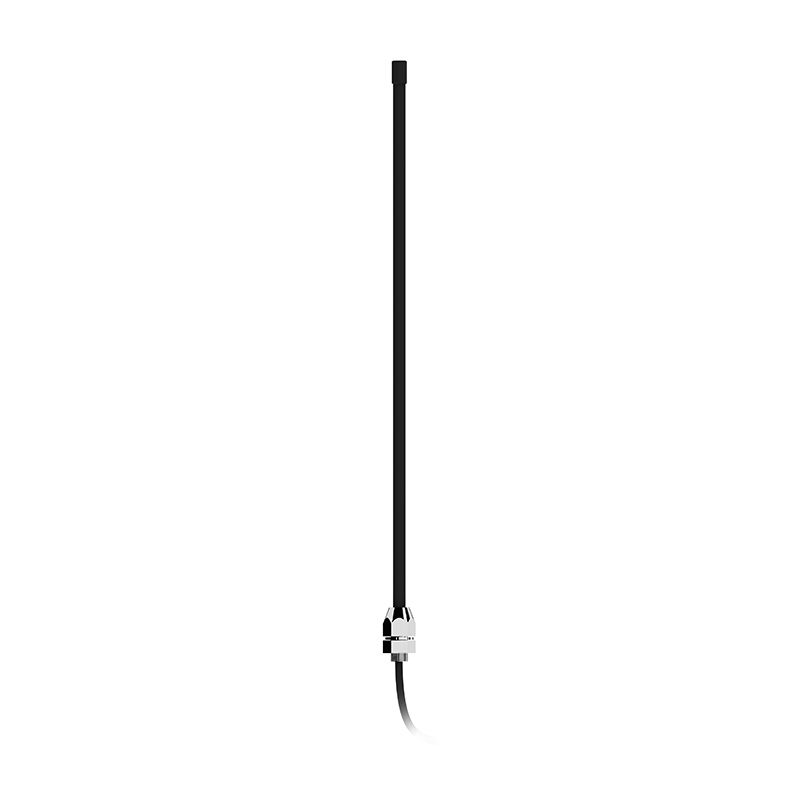

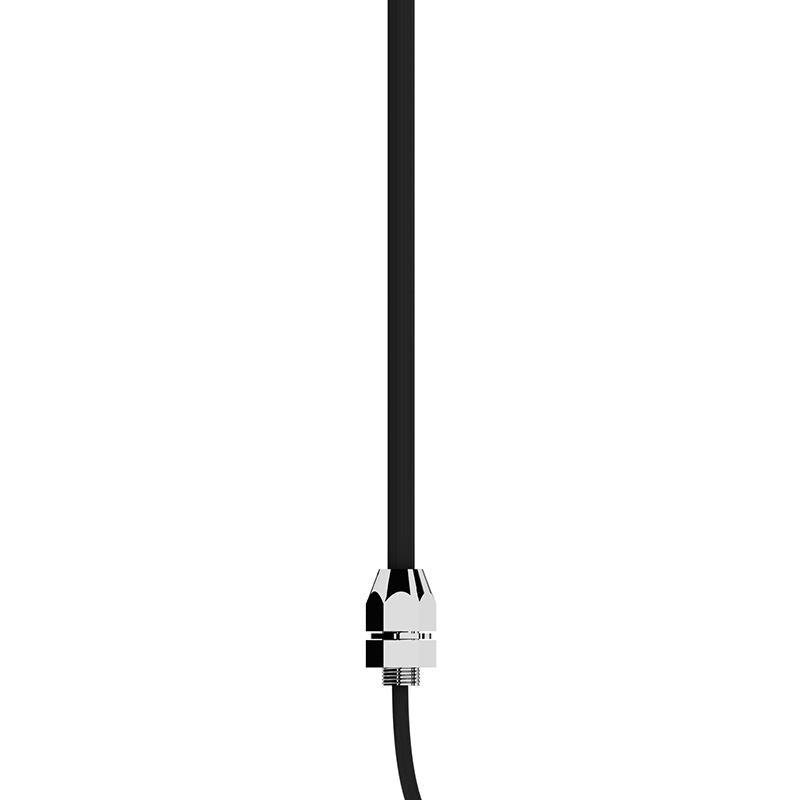

Benelec Flexi-Dipole UHF Mobile GPI Antenna 477MHz with 5m Lead
The 02634X is a UHF Mobile GPI Antenna, 4 dB gain, portable antenna covering UHF 470-490 MHz commercial Radio Bands. Its ground independence maintains a stable radiation pattern in all mounting applications. Its robust construction ensures excellent longevity and performance. Ideal for mounting in applications where ground plane area is non-existent or severely reduced.
- Description
- Specifications
Description
Benelec Flexi-Dipole UHF Mobile GPI Antenna 477MHz with 5m Lead
The 02634X has a robust construction to ensure excellent longevity and performance. Ideal for mounting in applications where ground plane area is non-existent or severely reduced. It is flexible, compact and can be mounted almost anywhere on the vehicle.
APPLICATIONS
UHF 477 MHz GPI Hand portable radios, non-ground plane applications.
FEATURES
- Ground Plane Independent
- Robust
- Flexible
- Compact
- Durable
TUNING
Performance can vary depending on the mounting method. For optimum performance the antenna can be clipped to tune it to a specific mounting location.
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
| Frequency | 477 MHz Under 1.5:1 |
| Gain | 4* dB |
| Impedance | 50 Ω |
| Radiation Pattern | Omni Directional |
| E Plane Beamwidth | 80 Deg |
| Length | 385 mm |
| Weight | 248 g (cable fitted) |
| Termination | Stud mount with 5m RG58C/U + FME Socket Fitted |
| Construction | Flexible Nylon Radome |
