Benelec UHF 6dBd Base Antenna 477MHz
SKU: 02648
Category: Outreach UHF CB and Cellular

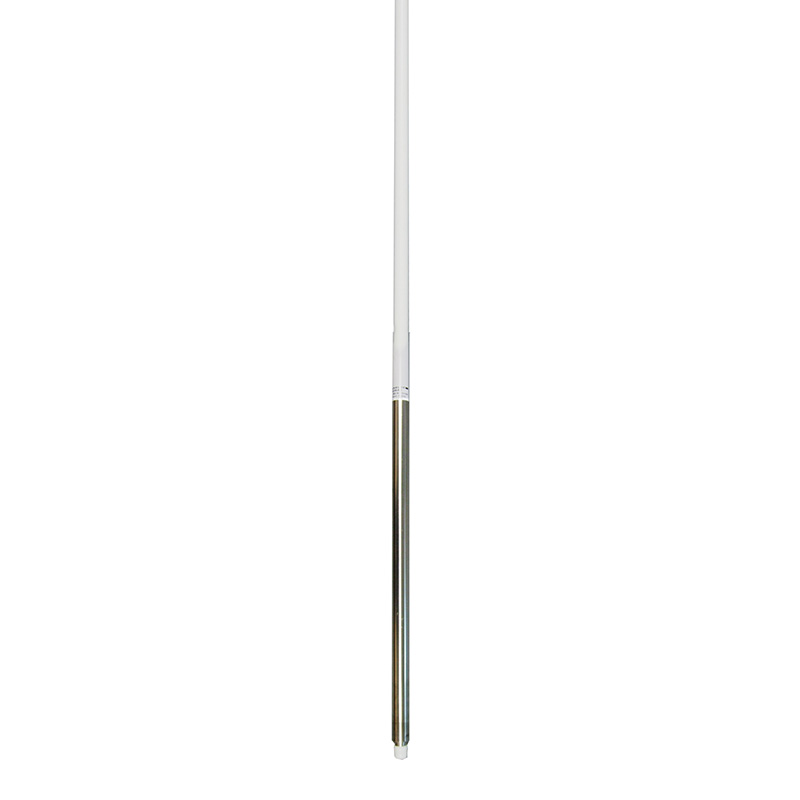

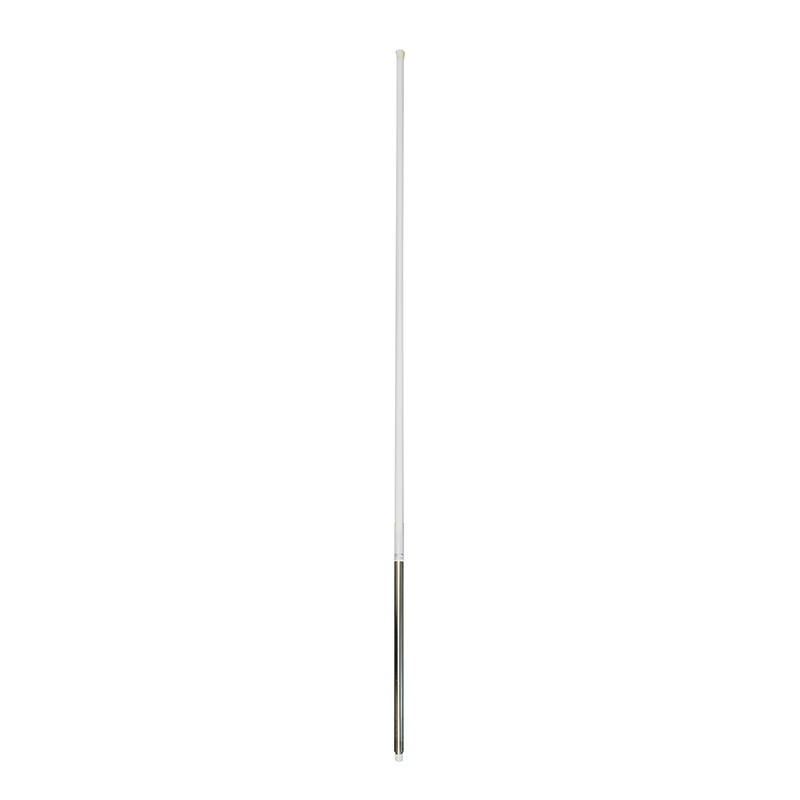

The 02648 a 6dBd Gain ,Colinear UHF Base Antenna covering the UHF Citizens Radio Band. Its high gain affords exceptional radio range coverage over distances not normally serviced by lower gain antennas. The 02648 antenna offers a stable radiation pattern with longevity and performance. Its smooth white tapered radome presents an attractive profile.
SKU: 02648
Category: Outreach UHF CB and Cellular
- Description
- Specifications
Description
Benelec UHF Base Antenna 6dBd, 477MHz
APPLICATIONS
Base coverage for the 477MHz UHF Citizens Band Radio Service
FEATURES
- 477MHz Citizens Band
- 6dBd Gain
- Stainless Steel Mounting
- Attractive smooth white tapered Radome
- Stainless Steel Mounting
- Copper Radiators
- Fixed N Female Connector
- DC Grounded
- Durable
TUNING
Factory tuned, no further tuning required
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
Frequency | 476.4250 – 477.4125 MHz |
Tuned Bandwidth | 6 MHz |
Gain | 6dBd |
Impedance | 50 Ω (Nominal) |
Operating VSWR | <1.5:1 |
Radiation Pattern | Omni Directional |
Length | 2.3m |
Weight | 1.5kg |
Termination | N-Type Female Receptable |
E Plane Beamwidth | 16 Deg |
Construction | Aluminium Tube Radiators, Fiberglass Radome, S/Steel Mounting Tube (25 (OD) x 450 (L) mm) |
