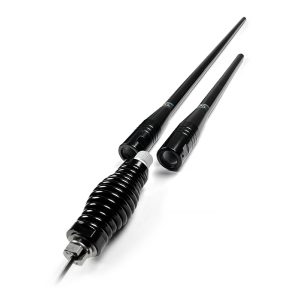

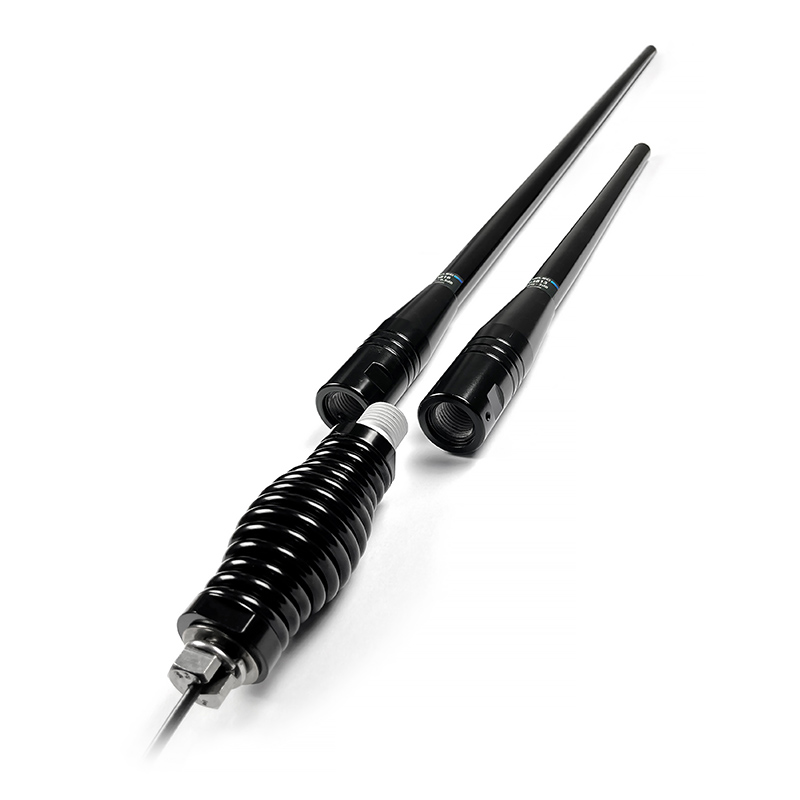

Benelec XTREME UHF 3 & 6.5dBi Ultra Heavy Duty Mobile Antenna Kit 477MHz
The Outreach Xtreme is a 6.5dB & 3dB ground independent UHF Mobile Antenna Kit covering the UHF Citizens radio band.
- Description
- Specifications
Description
Benelec XTREME UHF Mobile Antenna Kit 3 & 6.5dBi, 477MHz
The 026381K offers extreme durability and genuine 6.5dB & 3dB gain (over quarter wave), in two interchangeable antennas. This allows for both close convoy and long distance communication. The antennas cover the entire band of operation well under 1.5:1 VSWR. The construction of each antenna features a black Radom, and each antenna is removable from the spring assembly.
APPLICATIONS
High gain mobile coverage for the UHF Citizens Radio Band
FEATURES
- 5dB & 3dB Gain
- Ground Independent
- Ultra-Heavy-Duty Construction
- Quick, Simple Installation
- Pre-Tuned & Terminated
- No Special Tools Required
- Easy to Remove & Swap Antennas
- Antenna Locking Mechanism
- Allen Key Included
TUNING
Factory tuned; no further tuning required
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
| Frequency | 477 MHz |
| Gain | 3/6.5dB (*Gain over ¼ wave mounted on ground plane) |
| Impedance | 50 Ω (Nominal) |
| Operating VSWR | <1.5:1 |
| Radiation Pattern | Omni Directional |
| E Plane Beamwidth | 20 Deg |
| Length | 1093mm / 672mm |
| Weight | 2.1kg |
| Termination | 1/2” mounting stud 5m RG58 cable + UHF Male adaptor 04914 to suit FME plug ** |
