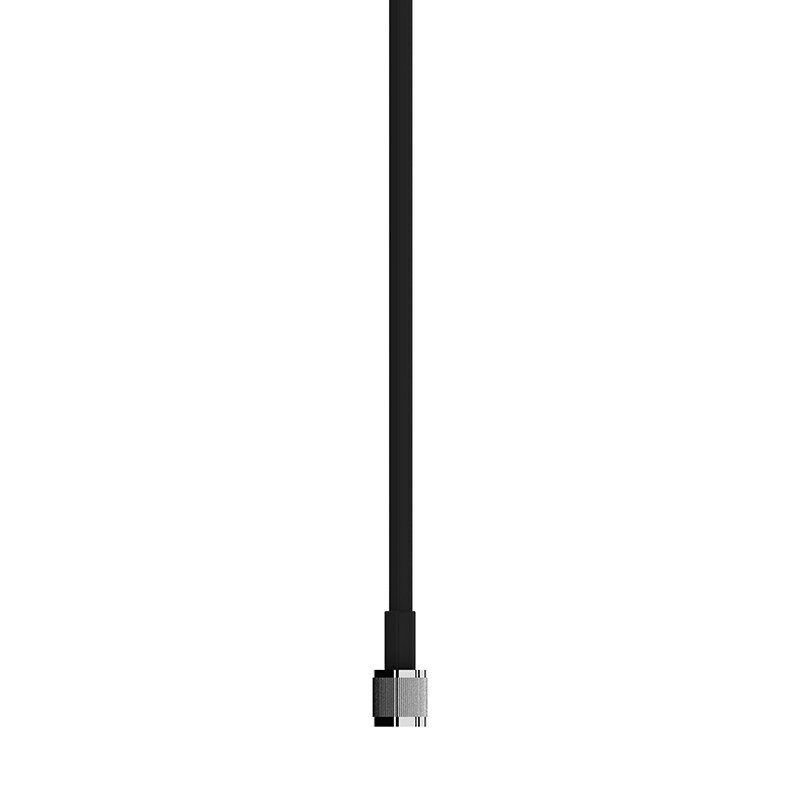

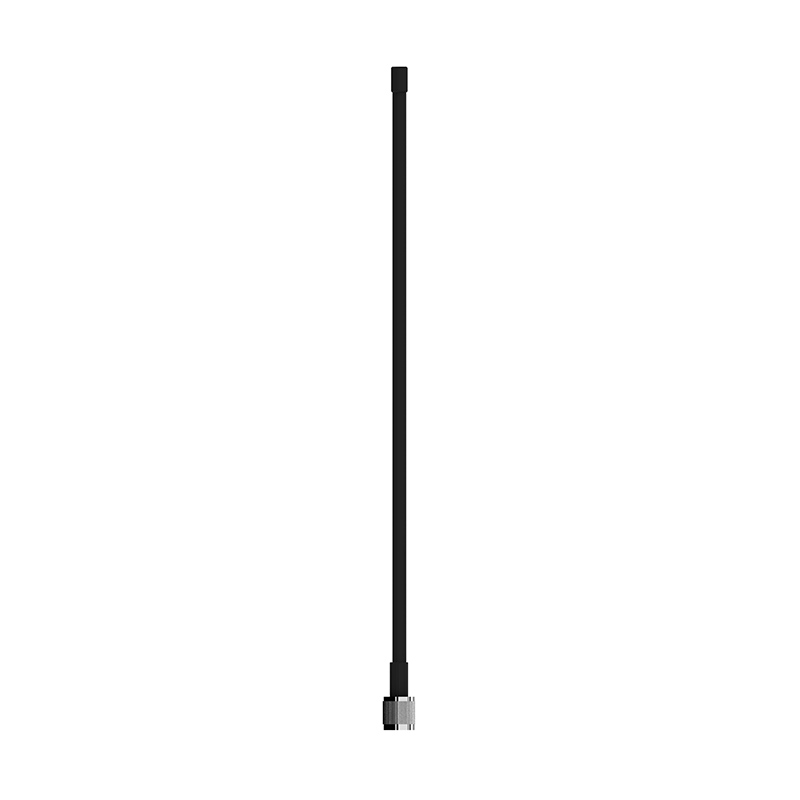

Benelec Flexi-Dipole UHF Mobile GPI Antenna M Base 477MHz
The 02634XC is a UHF Mobile GPI Antenna with 4 dB gain and ½ wavelength portable antenna, covering the UHF commercial Radio Bands from 470-490 MHz. Its ground independence maintains a stable radiation pattern in all mounting applications. Its robust construction ensures excellent longevity and performance. Ideal for mounting in applications where ground plane area is non-existent or severely reduced.
- Description
- Specifications
Description
Benelec Flexi-Dipole UHF Mobile GPI Antenna M Base 477MHz
The 02634XC is ideal for mounting in applications where ground plane area is non-existent or severely reduced. This is an ideal emergency antenna for temporary replacement of large colinear.
APPLICATIONS
UHF 477 MHz GPI Hand portable radios, non-ground plane applications.
FEATURES
- Ground Plane Independent
- Robust
- Flexible
- Compact
- Durable
TUNING
Although wide bandwidth, performance can vary depending on the mounting method. For optimum performance the antenna can be clipped to tune it to a specific mounting location. Refer to Tuning Methods in our Technical Information Section on our web site.
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
| Frequency | 470~490 MHz |
| Gain | 4 *dB |
| Impedance | 50 Ω |
| Radiation Pattern | Omni Directional |
| E Plane Beamwidth | 80 Deg |
| Power Handling | 30W |
| Length | 336 mm |
| Weight | 30 g |
| Termination | UHF Male plug (PL-259) |
| Construction | Copper Radiator, Flexible Nylon Radome |
