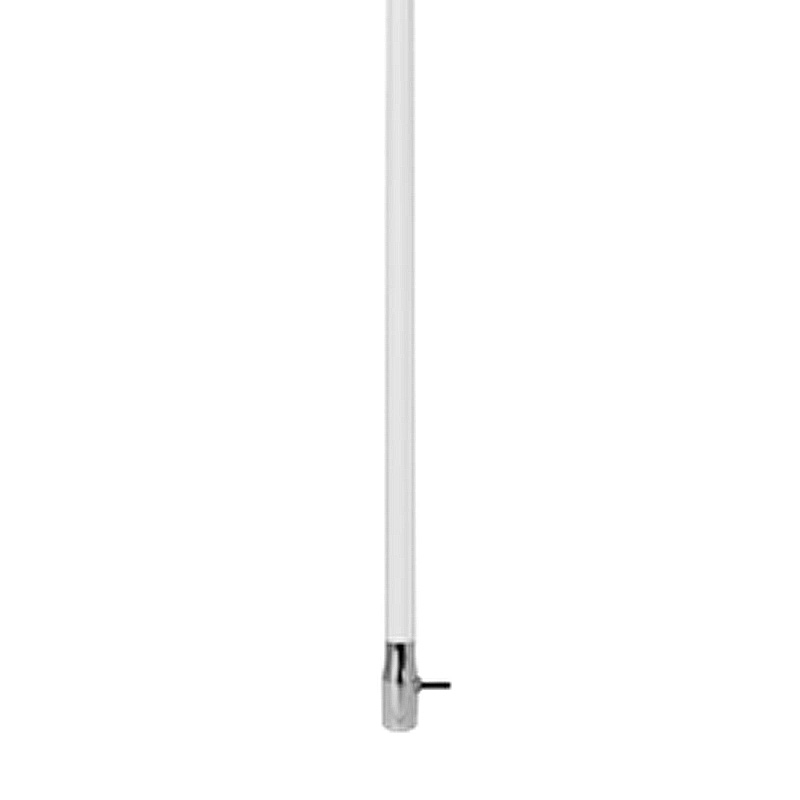

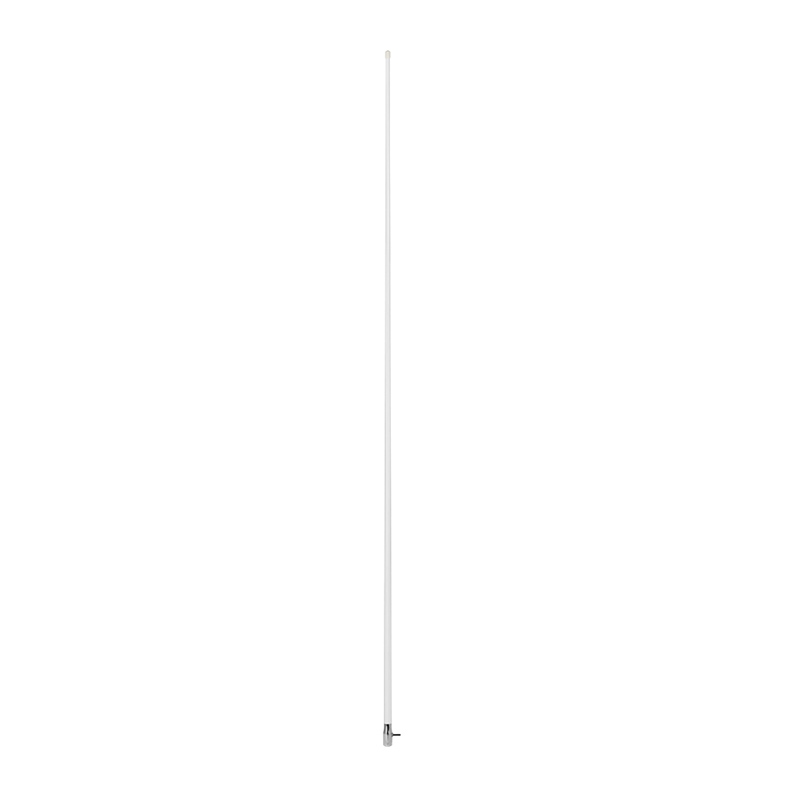

Benelec Cellular 5G 7.5dBi Marine Deck Mount Antenna 2.4m
The model 02463CH antenna is a 5G marine antenna for use in the bands 690-960 MHz, 1710-2700 MHz and 3500-3700 MHz bands. The antenna is housed in a white, smooth and rugged fiberglass radome, and comes complete with five meters of low loss cable. The feed cable is fitted with a male SMA connector allowing the option to fit other types of connectors best suited to match the radio in use.
[shipping_message]
- Description
- Specifications
Description
Cellular 5G Marine Antenna | Deck Mount 7.5dBi, 2.4m
APPLICATIONS
Marine Cellular
FEATURES
- Smooth white fibreglass radome
- 5 metres low loss cable
- SMA Male Connector
- Chromed Brass fittings
- Matches adjustable bases (bases optional extra)
- Two band coverage
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
| Gain | 7.5dBi gain 690-960 MHz, 2.4dBi gain 1710-2700 MHz, 3.0dBi gain 3500-3700 MHz. |
| VSWR | <2.2:1 Max both bands. |
| Impedance | 50 Ohms nominal. |
| Polarisation | Vertical |
| Radiation | Omni directional. |
| Power Rating | 50 watts. |
| Cable | 5m Low loss LL195 |
| Termination | SMA Male Cable tail** |
| Base Materials | Fiberglass and Chromed Brass. |
| Antenna Length | 8’ (2430mm) |
| Weight | 1.2kg (2.6 lb) |
