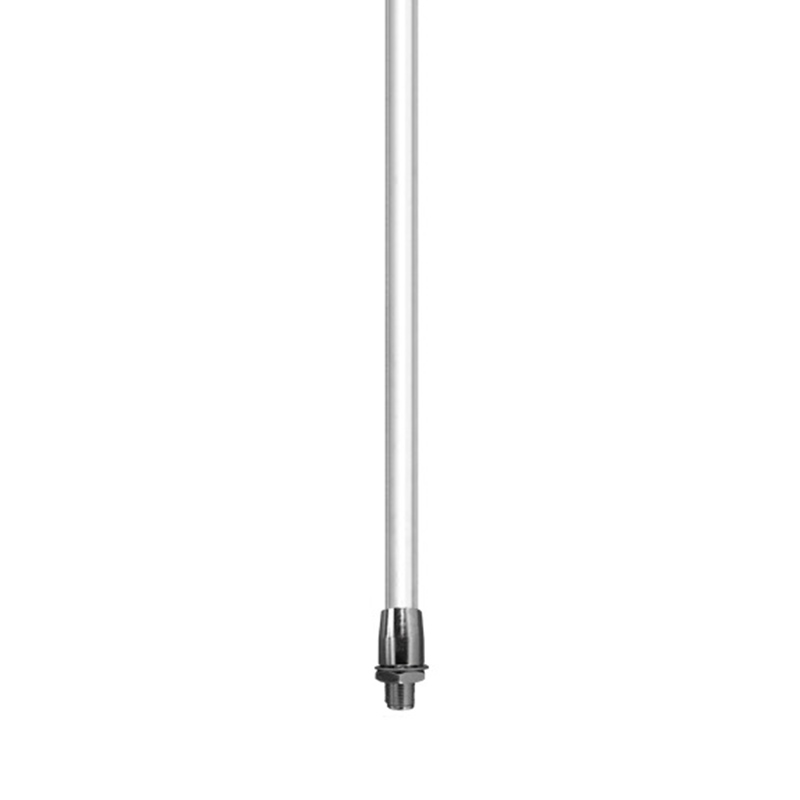

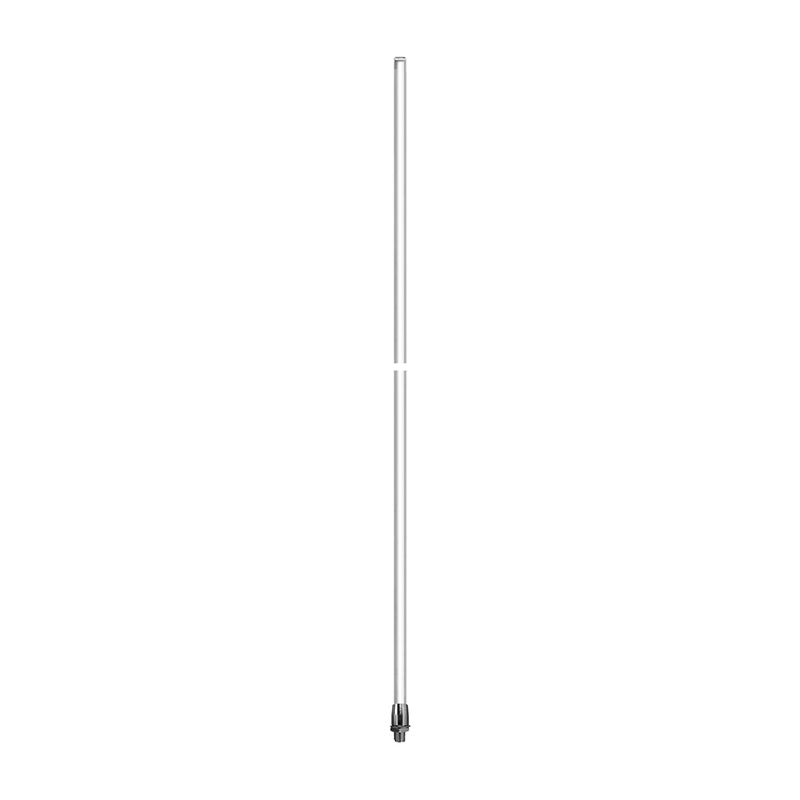

Benelec Cellular 5G 7.5dBi Marine Base Antenna, White
024579BW is a multi-band GPI 5G Marine Antenna intended for use in the bands 690 – 960 MHz, 1710 – 2700 MHz, and 3500 – 3700 MHz including the 915 – 928 MHz ISM Band & 915 MHz 802.11ah WiFi Hallow Band. & 2.4GHz ISM Band. The antenna does away with the need for many separate antennas whilst maintaining high gain across the band 690 – 960 MHz It comes with an N socket termination. The antenna is light weight, fitted to a stainless-steel stud, in a white radome.
[shipping_message]
- Description
- Specifications
Description
Cellular 5G Marine Antenna 7.5dBi, White
APPLICATIONS
5G Multi-band, Light weight Base Station
FEATURES
- Multi-Band performance
- Easy to install
- Fiberglass and thick-walled radome
- Light weight
- Chromed Brass fittings
- Designed and manufactured in Australia
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
| Frequency | 690 – 960 MHz Tuned Bandwidth 270 MHz
1710 – 2700 MHz Tuned Bandwidth 990 MHz 3500 – 3700 MHz Tuned Bandwidth 200 MHz |
| Gain | 7.5 dBi (690 – 960 MHz)
3 dBi (1710 – 2700 MHz) 3 dBi (3500 – 3700 MHz) |
| Impedance | 50 Ω |
| Operating VSWR | < 2:1 |
| Radiation Pattern | Omni Directional |
| E Plane 3dB Beamwidth | 14 Deg @ 690-960MHz |
| Length | 1040mm |
| Width | Fiberglass: 16mm (0.6”) |
| Weight | 0.80 kg (1.8 lbs) |
| Termination | N Socket |
| Construction | Fibreglass Radome, White |
