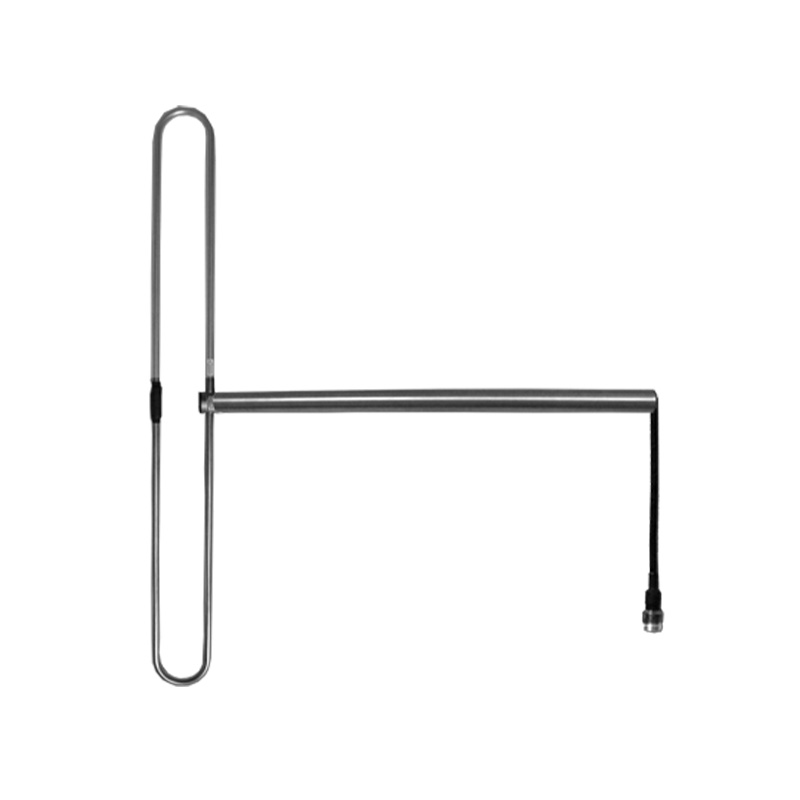

Benelec VHF FM Base Folded Dipole Antenna 88 – 108 MHz, N Socket
AUD Includes GST
The 02530 antenna is a unity gain stainless steel side-mount dipole designed for the FM commercial radio band (88–108 MHz). Its wide bandwidth ensures reliable performance across the entire band, delivering a stable radiation pattern. Using the appropriate phasing harness, the 02530 can be configured in two or four-stack arrays to achieve higher gain where required. Built from durable stainless steel, it offers enhanced weather and corrosion resistance, ensuring long service life in demanding environments.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec VHF FM Base Folded Dipole Antenna
88 – 108 MHz | N Socket
FEATURES
- VHF 88 – 108 MHz band
- Unity gain
- Durable, robust construction
- Stainless-steel mounting boom
- Stainless-steel folded dipole
- Extreme weather resistance
- Factory tuned; no further tuning required
- Designed and manufactured in Australia
APPLICATION
FM commercial radio stations.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 88 – 108 MHz |
| Gain | 0 dBd |
| Impedance | 50 Ω |
| F/B Ratio | 7 dB |
| Tuned Bandwidth | 20 MHz |
| Termination | Cable tail with N-Type socket receptacle |
| Construction | All stainless-steel construction |
| H Plane Beamwidth | 200° |
| E Plane Beamwidth | 80° |
| Power Rating | 300 W |
| Length | 1260 mm |
| Boom Length | 1115 mm |
| Width | 1400 mm |
| Net Weight | 5 kg |
