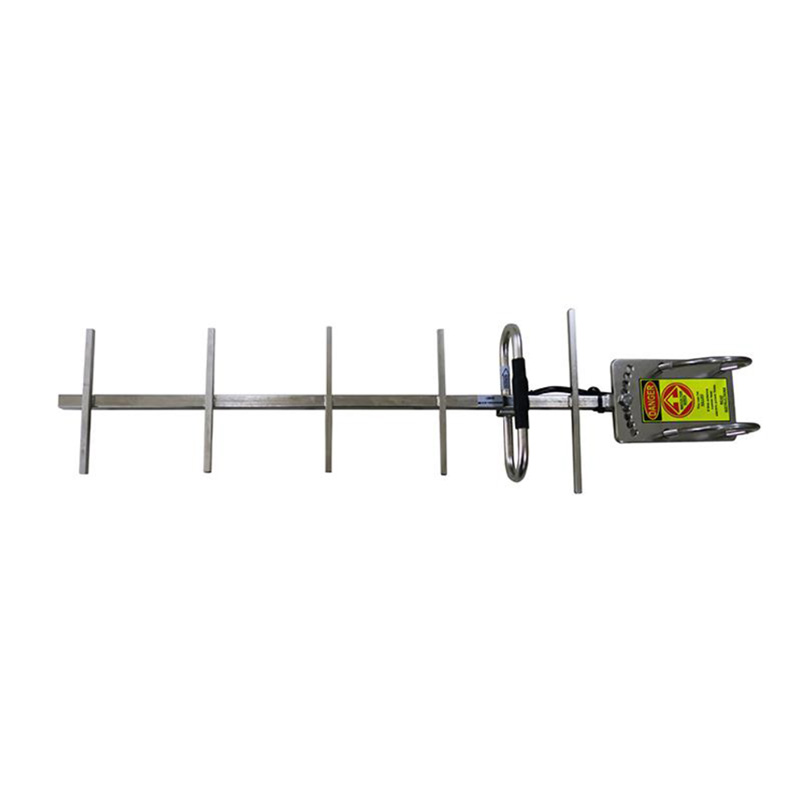

Benelec UHF 9dBd 6 Element Yagi Antenna with Stainless Steel Bracket 758-870MHz, N Socket
AUD Includes GST
The 024821 is a 9 dBd gain, stainless-steel Yagi antenna designed for the linking band (758–870 MHz). Its high gain provides exceptional radio link coverage, while the stable radiation pattern ensures consistent performance across the entire frequency range. The robust, all-stainless-steel construction offers excellent weather and corrosion resistance. All mechanical connections are welded to minimise intermodulation, and all electrical connectors are directly soldered for reliable operation.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF 9dBd 6 Element Yagi with Stainless Steel Bracket
758-870MHz | N Socket
FEATURES
- Stainless-steel mounting boom and bracket
- Folded stainless-steel dipole
- Solid stainless-steel passive elements
- Rugged construction
- Benelec adjustable angle bracket included (max: Ø 62 mm)
- Factory tuned, no further tuning required
- Designed and manufactured in Australia
APPLICATION
Link coverage for the 758 – 870 MHz radio band.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 758 – 870 MHz |
| Gain | 9 dBd |
| VSWR | <1.5:1 |
| Bandwidth | *12 MHz |
| Impedance | 50 Ω nominal |
| Polarisation | Vertical |
| Radiation | Directional |
| Termination | Cable tail with N socket receptacle |
| Mounting | 1/2″ square stainless-steel tube |
| Power Rating | 100 W |
| Projected Area | 0.026 m²
0.066 m² [w/ 0.5” ice] |
| Wind Loading @ 160 kph |
7.14 Kgf (70 N)
19.37 Kgf (190 N) [w/ 0.5” ice] |
| Length | 609 mm |
| Width | 176 mm |
| Net Weight | 2.5 kg |
