Benelec UHF 3dBd Spot Frequency Base Antenna 3% Bandwidth 400-520MHz, N Socket
AUD Includes GST

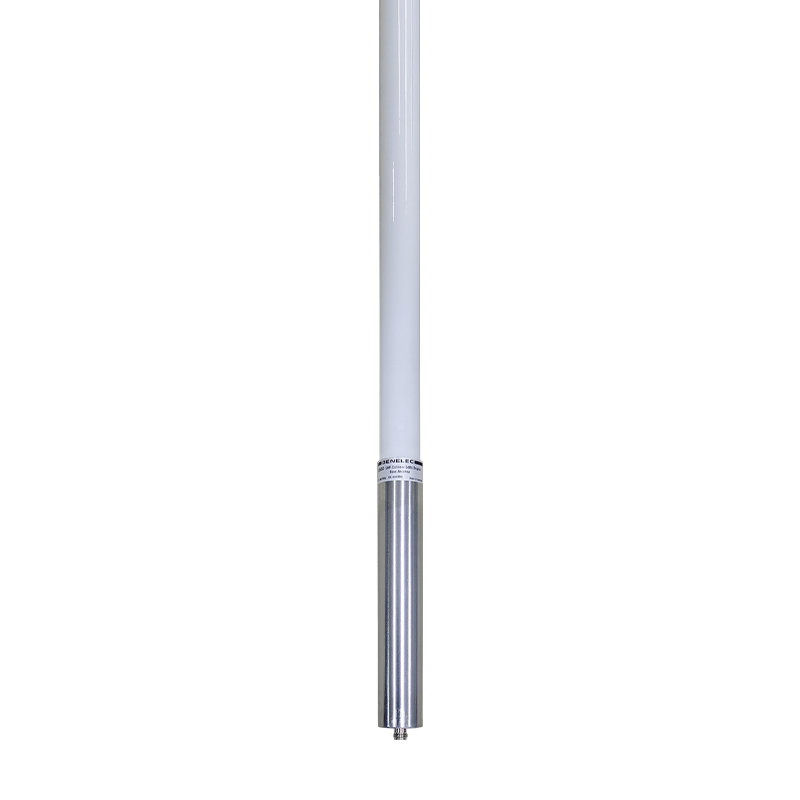

The 02645D is a 3 dBd gain base station antenna engineered for the UHF commercial radio band. It delivers a stable radiation pattern with minimal horizontal tilt, ensuring reliable coverage. Built with a rugged electropolished stainless steel mounting tube, the antenna offers long-term durability in demanding environments. Its smooth, white tapered radome provides both weather resistance and a clean, professional appearance.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF 3dBd Spot Frequency Base Antenna
3% Bandwidth | 400-520MHz | N Socket
FEATURES
- Covers the UHF 400–520 MHz band
- 3 dBd (5.15 dBi) gain
- Stable radiation pattern
- Durable and robust construction
- Smooth white radome
- Excellent longevity and performance
- Factory tuned specified 3% segment (~10 MHz); no further tuning required
- Designed and manufactured in Australia
APPLICATION
Base coverage for simplex and duplex UHF commercial radio band.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 400 – 520 MHz
(tuned at 3% segment) |
| Bandwidth | 3% |
| Gain | 3 dBd (5.15 dBi) |
| VSWR | <1.5:1 10 MHz B.W. |
| Impedance | 50 Ω nominal |
| Polarisation | Vertical |
| Radiation Pattern | Omni-directional |
| E-Plane Beamwidth | 32° |
| Power | 100 W |
| Termination | N socket |
| Wind Loading | 14.25 kg (139.78 N) @160 km/h
(antenna tuned @ 315 MHz) |
| Construction | Stainless-steel, brass, and fibreglass |
| Length | 1500 – 2142 mm |
| Mounting | 50 mm diameter |
| Net Weight | 3.1 kg |
