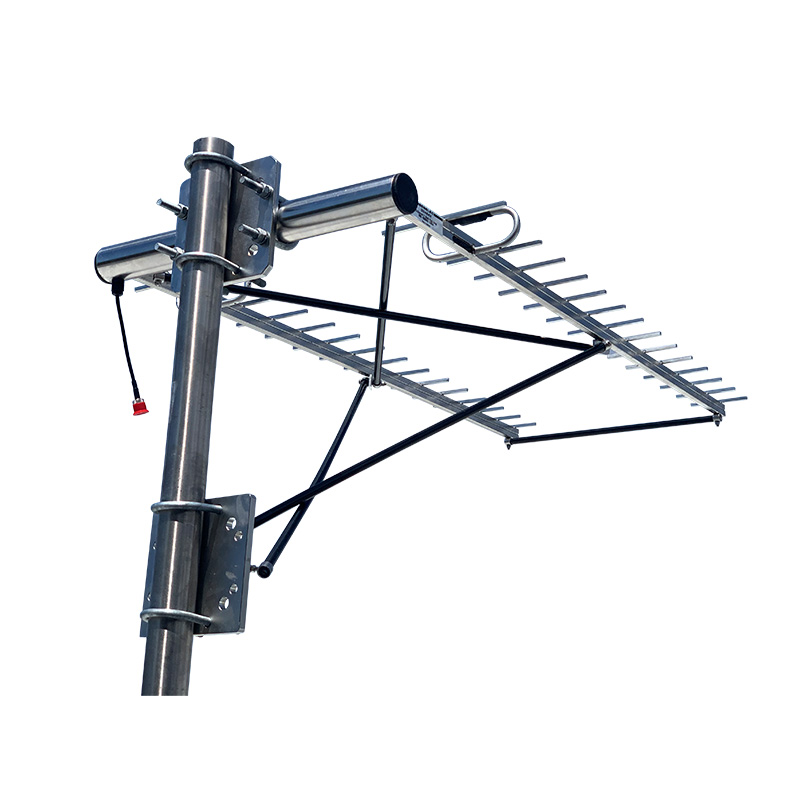

Benelec UHF 15dBd 15 Element Dual Yagi Antenna Array 800-896MHz, N Socket
AUD Includes GST
The 024842 is a high-gain, 15 dBd, 15-element, dual-stack stainless-steel Yagi array designed for the 800–896 MHz band. Its directional design provides excellent radio link and 4G coverage*.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF 15dBd 15 Element Dual Array Yagi Antenna
800-896MHz | N Socket
FEATURES
- All stainless-steel
- Full band coverage
- Low VSWR across band
- All welded construction
- Two galvanised brackets included
- Factory tuned, no further tuning required
- Designed and manufactured in Australia
APPLICATION
Link applications. LTE bands 5, 6, 18, 19, 20, 26, 27*.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 800 – 896 MHz |
| Gain | 15 dBd (mid band) |
| VSWR | < 1.5:1 entire band |
| Impedance | 50 Ω |
| Polarisation | Horizontal |
| F/B Ratio | 20 dB (mid band) |
| Termination | N socket |
| Base Material | All stainless-steel |
| Power Rating | 100 W |
| E Plane 3 dB Beamwidth | 18° |
| H Plane 3 dB Beamwidth | 45° |
| Projected Area | 0.175432 sqm |
| Wind Loading | 189.95 N @ 160 kph |
| Length | 1156 mm |
| Width | 700 mm (max.) |
| Net Weight | 12.7 kg |
