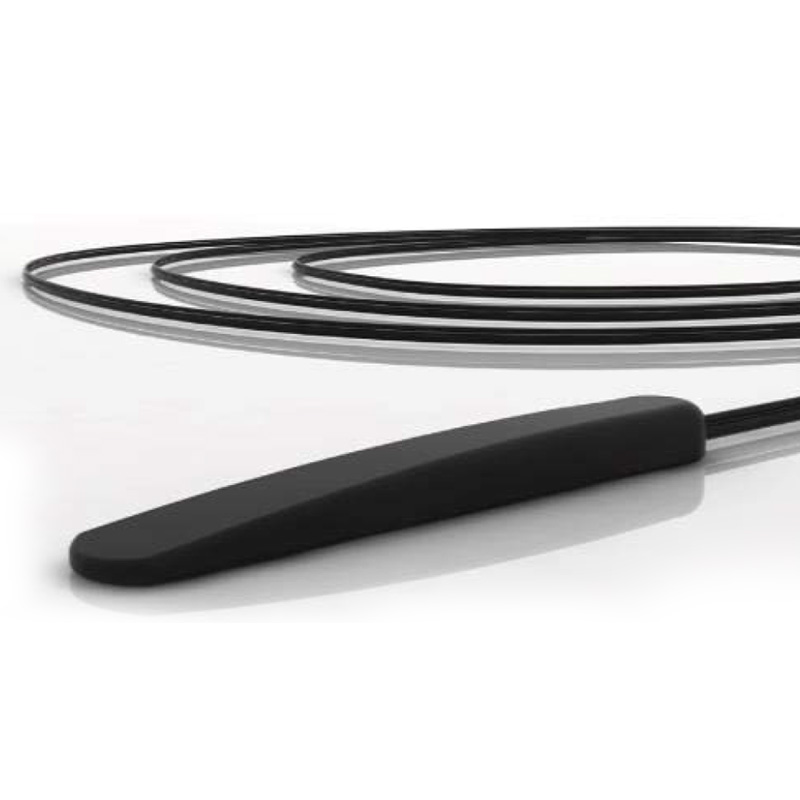

Benelec Active GPS Glass Mount Wi-Fi Antenna 2.4GHz
The model 029327 is a unity gain, Multi band Glass Mount Antenna suited for use in the WIFI band. This antenna also incorporates a high- performance active GPS antenna. The antenna comes complete with 5 metres of low loss cable and a QMA connector for each feed. Other terminations are available on request.
[shipping_message]
- Description
- Specifications
Description
Active GPS Wi-Fi Glass Mount Antenna | 2.4GHz
The Benelec Active GPS Glass Mount Wi-Fi Antenna is a compact, multi-band antenna designed for in-vehicle use. It supports Wi-Fi and GPS connectivity, providing reliable performance through the vehicle’s windscreen. With a sleek design and easy installation, it ensures strong signal reception without external mounting.
APPLICATION
The antenna is designed to be mounted on the inside of the vehicle front windscreen. The antenna has been optimised to operate through the glass.
FEATURES
- Multi-Band Antenna
- Optimized for In-Vehicle Use
- Stable VSWR Performance
- Low Loss Cable & QMA Connector
- Durable & Weather-Resistant
- Compact & Lightweight
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
CELLULAR SPECIFICATIONS
| Bands | Wi-Fi |
| Frequency | 2300-2500MHz |
| Gain (dB) | Unity |
| Tuned Bandwidth | 200 MHz |
| Operating VSWR | <2.0:1 |
| Input Impedance | 50 ohms (Nominal) |
| Vertical Beamwidth | 80 deg |
| Horizontal | Omni |
| Length | 198mm |
| Width | 36mm |
| Weight | 100gm |
| *Cable | LL195 x 5M |
| *Connector | QMA |
GPS SPECIFICATIONS
| Frequency | GPS   1575.42 ± 2MHz |
| GPS Gain | 28 ± 3 dB amplifier, 5dBi Antenna |
| VSWR | 2:1 max over range |
| Operating Temp | -40 ~ +85° C |
| Normal Impedance | 50 ohms |
| Noise Figure | 1.5 dB |
| Current Drain | 8 ~ 15 mA |
| *Cable | LL100x 5M |
| *Connector | QMA |
| Maximum Power | 10 watts |
| Amplifier Bias | 3 ~ 5 VDC |
