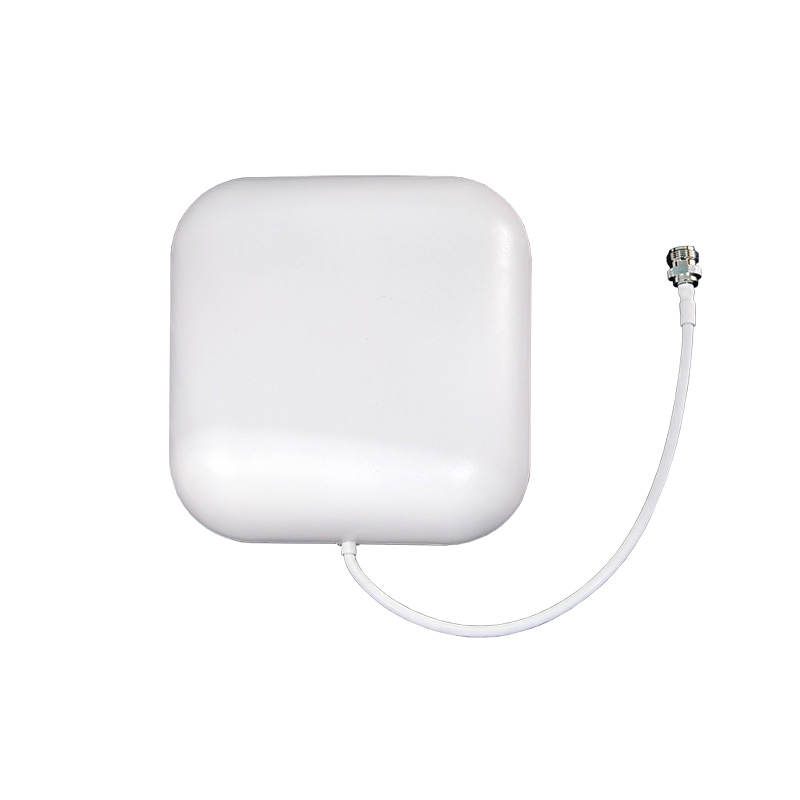

Benelec Cellular 5G 8.5dBi Base Indoor Panel Antenna with Mounting Bracket
The Benelec Cellular 5G 8.5dBi Indoor Panel Antenna is designed for efficient indoor signal distribution, offering reliable performance across multiple frequency bands. Its compact, lightweight, and durable radome construction makes it ideal for offices, buildings, and other indoor environments.
[shipping_message]
- Description
- Specifications
Description
Cellular 5G Indoor Panel Antenna with Mounting Bracket | 8.5dBi
The Benelec Cellular 5G 8.5dBi antenna is designed for reliable indoor signal distribution. Its compact, lightweight design and wide frequency range make it ideal for improving cellular and 5G coverage.
APPLICATIONS
Indoor distributed antenna system
FEATURES
- Compact and lightweight
- Wide bandwidth
- Anti-ultraviolet ABS radome
- Economically priced
- Directional Coverage
- Durable Construction

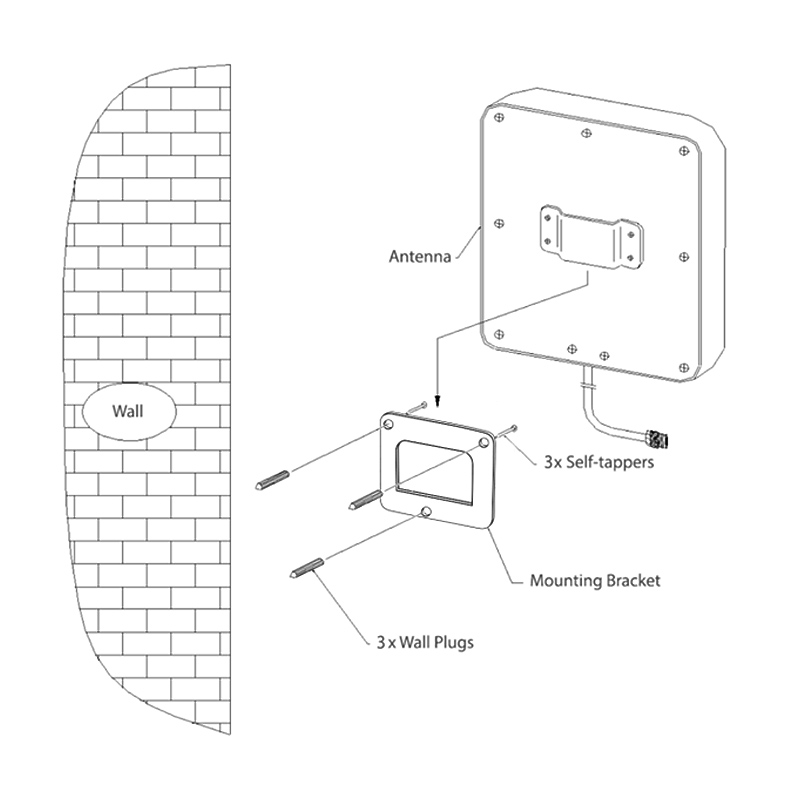

MOUNTING
Quick and easy wall mounting bracket
WARRANTY
12 months (Please refer to Benelec Terms & Conditions)
| Frequency | 698-960 MHz | 1710-2700 MHz | 3400-4000 MHz |
| Gain | 5.5 dBi | 7.0 dBi | 8.5 dBi |
| Horizontal Beamwidth | 80 deg | 65 deg | 55 deg |
| Vertical Beamwidth | 70 deg | 60 deg | 30 deg |
| VSWR | ≤ 1.8 | ||
| Intermodulation IM3 | 50 (2 x 33 dBm) | ||
| Input Impedance | 50 Ω | ||
| Max Power | 50 W | ||
| Lightning Protection | DC Ground | ||
| Connector Type | N-Female | ||
| Antenna Dimension | 180 mm x 170 mm x 60 mm | ||
| Antenna Weight | 0.4 kg | ||
| Antenna Radome Material | ABS | ||
| Working Temperature | -40°C to +65 °C | ||
| Mounting Hardware | ï¿ 35ï½žï¿ 60 mm | ||
| Rated Wind Velocity | 60 m/s | ||
| Cable Length | 30 cm | ||
