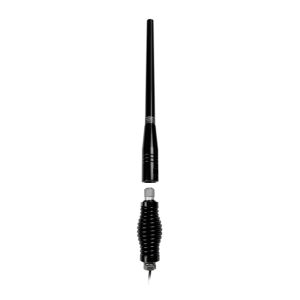

Benelec XTREME UHF 3dBi Ultra Heavy-Duty Mobile Antenna Kit
The 026383S Outreach Xtreme is a 3 dB ground-independent mobile short antenna designed for the UHF citizens radio band. It delivers genuine 3 dB gain (over a quarter-wave) with extreme durability and maintains a VSWR well under 1.5:1 across the entire operating band. The antenna features a black thick-wall radome and a heavy-duty design, with the antenna easily removable from the spring assembly.
[shipping_message]
- Description
- Additional information
- Specifications
Description
XTREME UHF Mobile Antenna | 3 dBi | Ultra Heavy-duty
APPLICATIONS
High gain mobile coverage for the UHF citizens radio band
FEATURES
- 3dB gain, ground independent
- Ultra-heavy-duty construction
- Pre-tuned and terminated
- No special tools required
- Antenna locking mechanism
- Quick and simple installation
- Easy to remove antenna
- Allen key included
- Factory tuned; requires no further tuning
- Designed and manufactured in Australia
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
Additional information
| Weight | 2000 g |
|---|---|
| Dimensions | 1000 × 220 × 220 mm |
| Frequency | 477 MHz |
| Gain | 3dBi* |
| Impedance | 50 Ω (nominal) |
| VSWR | <1.5:1 |
| Radiation Pattern | Omni-directional |
| E-Plane Beamwidth | 20° deg |
| Termination | 1/2” mounting stud 5 m RG58 cable + UHF male adaptor 04914 to suit FME plug |
| Length | 672 mm
(includes spring) |
| Net Weight | 1.6 kg |
