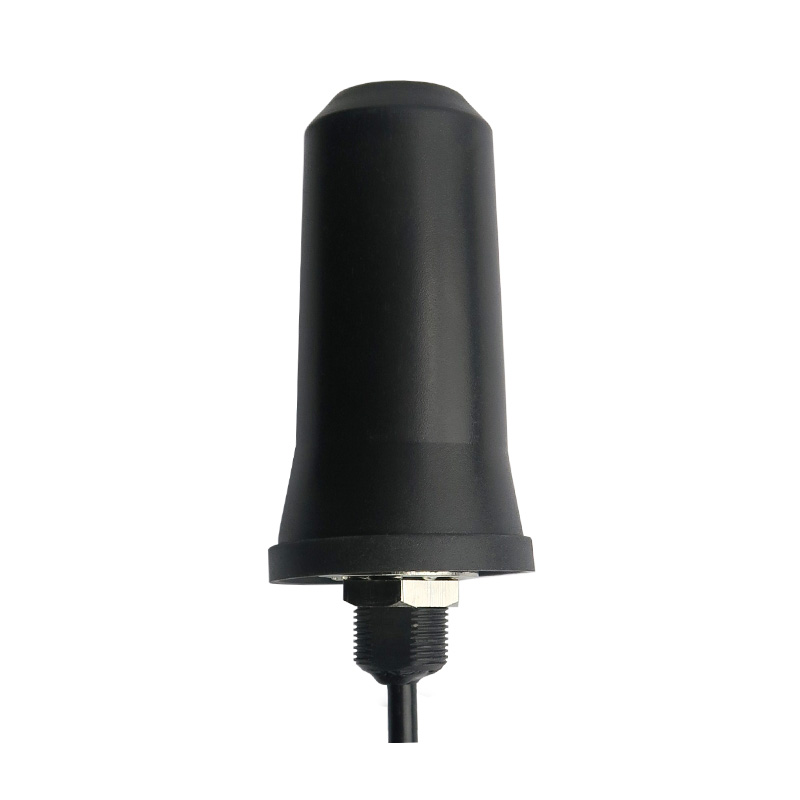

Benelec Cellular 5G 3dBi Mobile or Fixed Site Low Profile Antenna
SKU: 024563
Category: 4G/5G Cellular Antennas
The 024563 is an economically priced, compact, unity gain cellular 5G antenna suited for use in the frequency bands 695–960, 1710–2700, 3500–3800 MHz. It comes with a 2 m (6 ft) low loss cable terminating in an SMA plug connector and is suited for mounting onto telemetry boxes. This antenna is mounted to a supplied bracket or through a 16 mm (0.6”) hole.
SKU: 024563
Category: 4G/5G Cellular Antennas
- Description
- Specifications
Description
Benelec Cellular 5G Antenna – 3dBi Mobile or Fixed Site
APPLICATIONS
Fixed/Mobile solutions for 5G cellular bands 695-960, 1710-2700, 3500-3800 MHZ
TUNING
Factory tuned; requires no further tuning
FEATURES
- Cellular 5G
- Ground Plane Independent
- Economically Priced
- Compact
- Comes complete with a 2 m (6 ft) low loss cable terminating in an SMA male connector
- Reliable & Durable
- Mounted to an optional bracket
- Requires 16 mm (0.6”) mounting hole
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
Frequency | 695–960, 1710–2700, 3500–3800 MHz |
VSWR | <2:1 |
Gain | 2 /3/ 5 dBi |
Impedance | 50 Ohm |
Polarisation | Vertical |
Radiation Pattern | Omni-directional |
Power | 5 W |
Height & Diameter | 77 mm and 41 mm (3” and 1.6”) |
Weight | 160 g (5.6 oz) |
Humidity | 5–95 % |
Termination | 2 m (6 ft) Low Loss 195 Cable with SMA Plug |
