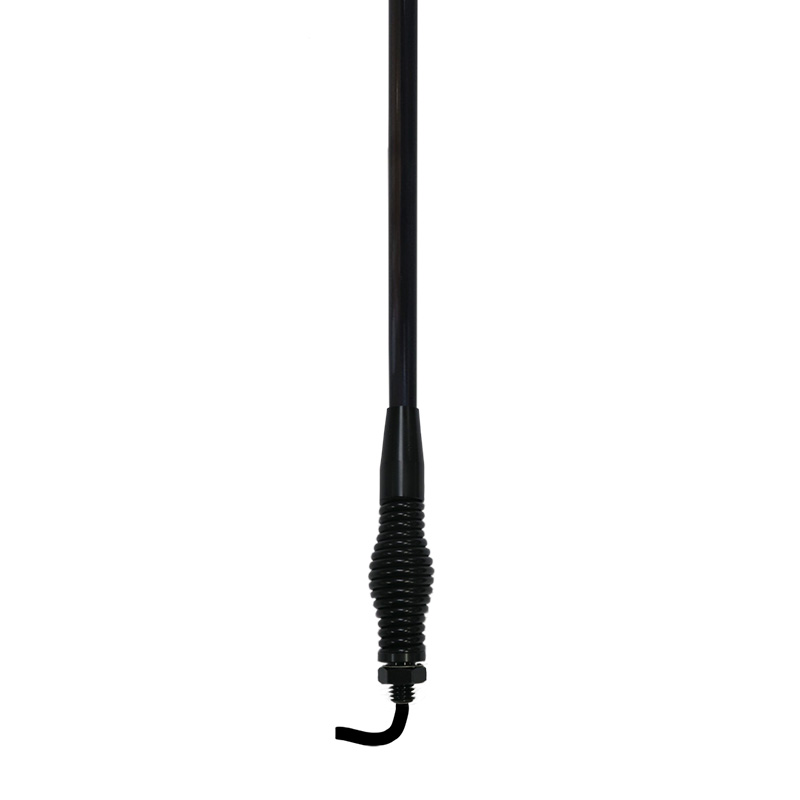

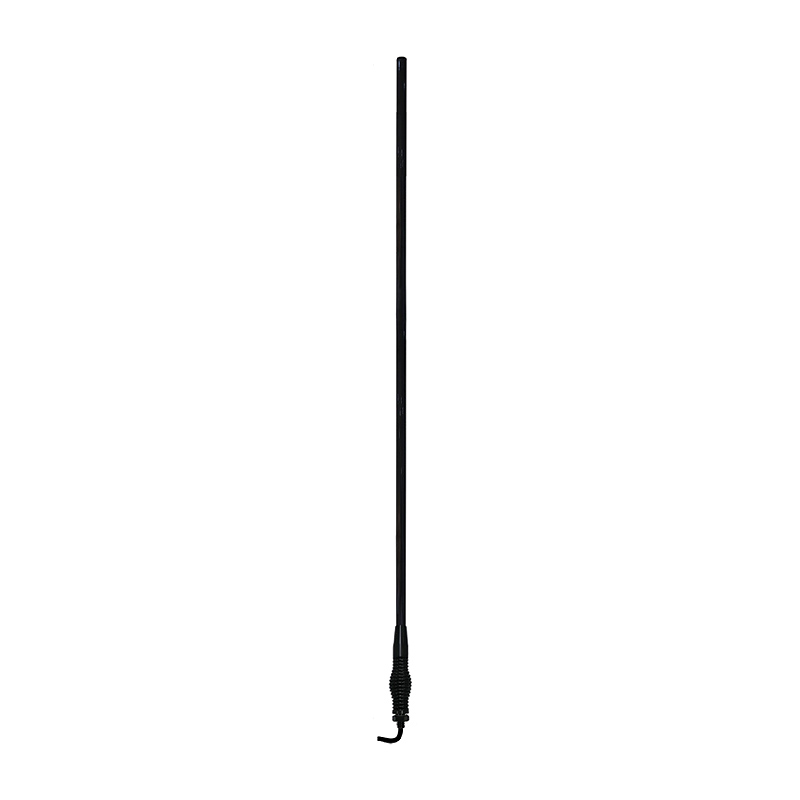

Benelec Cellular 5G 6dBi Mobile Collinear Spring Mounted Antenna
The 024575 is a multi-band cellular 5G mobile collinear antenna intended for use in the frequency bands 690 – 960 MHz, 1710 – 2700 MHz and 3500 – 3700 MHz. The 024575 antenna eliminates the need for three separate antennas while maintaining high gain across the band. The antenna utilises a low-loss cable lead directly attached to the antenna, which allows for ease of installation.
[shipping_message]
- Description
- Additional information
- Specifications
Description
Benelec Cellular 5G Mobile Collinear Antenna Spring Mounted 6dBi
APPLICATIONS
- Mobile and cellular communications
- Cellular Repeaters
- Multi-band base station
FEATURES
- Multi-Band Performance
- Easy to install
- Fiberglass and thick-walled radome
- Light weight

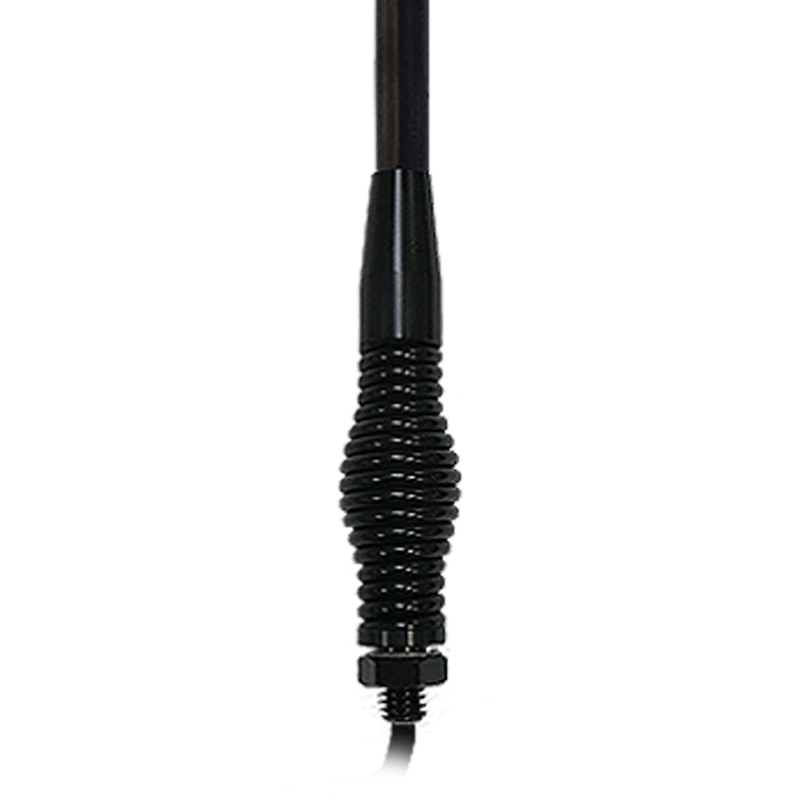

- Plated heavy duty barrel stainless steel spring
- Designed and manufactured in Australia
TUNING
Factory tuned; requires no further tuning
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
Additional information
| Weight | 800 g |
|---|---|
| Dimensions | 920 × 220 × 100 mm |
| Frequency | 690 – 960 MHz Tuned Bandwidth 270 MHz
1710 – 2700 MHz Tuned Bandwidth 990 MHz 3500 – 3700 MHz Tuned Bandwidth 200 MHz |
| Gain | 6 dBi (690 – 960 MHz)
3 dBi (1710 – 2700 MHz) 3 dBi (3500 – 3700 MHz) |
| Impedance | 50 Ohm |
| VSWR | < 2:1 |
| Radiation Pattern | Omni-directional |
| E Plane 3dB Beamwidth | 60 deg |
| Length | 905 mm (includes spring assembly) |
| Width | Fiberglass: 16 mm (0.6”)
Spring: 35 mm (1.4”) |
| Weight | 0.75 kg (1.65 lbs) |
| Termination | SMA Plug, 5 m (16’) RG58 Cable Tail (05603) |
| Construction | Fiberglass Radome, Black Coated Stainless-Steel Spring |
