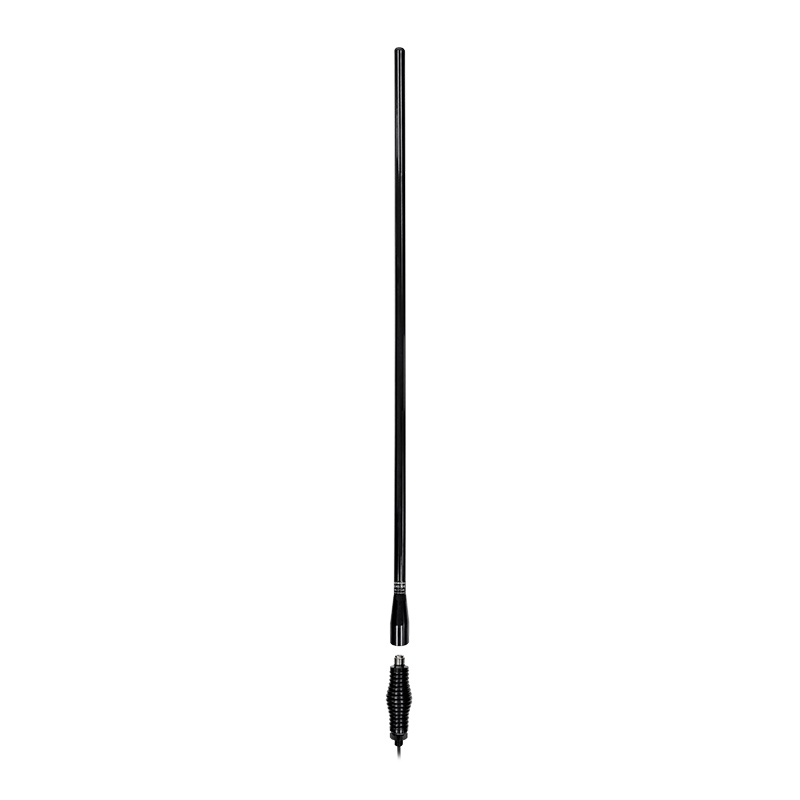

Benelec Cellular 5G 7.5dBi Mobile Collinear Removable Spring Antenna
The 024579R 5G antenna is multi-band cellular antenna intended for use in frequency bands 690 – 960 MHz, 1710 – 2700 MHz and 3500 – 3700 MHz. The antenna is light weight, enclosed in a thick-walled fiberglass Radom and comes with a removable cable assembly.
[shipping_message]
- Description
- Specifications
Description
Benelec Cellular 5G Antenna | Mobile Collinear | Removable Spring | 7.5dBi
The 024579R 5G antenna is multi-band cellular antenna intended for use in frequency bands 690 – 960 MHz, 1710 – 2700 MHz and 3500 – 3700 MHz. The antenna is light weight, enclosed in a thick-walled fiberglass Radom and comes with a removable cable assembly.
APPLICATIONS
- Mobile and cellular communications
- Cellular Repeaters
- Multi-band base station
FEATURES
- Multi-Band performance
- Easy to install
- Fiberglass and thick-walled radome
- Light weight
- Plated heavy duty barrel stainless steel spring
- Designed and manufactured in Australia
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
| Frequency | 690 – 960 MHz Tuned Bandwidth 270 MHz
1710 – 2700 MHz Tuned Bandwidth 990 MHz 3500 – 3700 MHz Tuned Bandwidth 200 MHz |
| Gain | 7.5 dBi (690 – 960 MHz)
3 dBi (1710 – 2700 MHz) 3 dBi (3500 – 3700 MHz) |
| Impedance | 50 Ohm |
| VSWR | < 2:1 |
| Radiation Pattern | Omni-directional |
| E Plane 3dB Beamwidth | 20 deg |
| Length | 1220 mm (includes spring assembly) |
| Width | Fiberglass: 16 mm (0.6”)
Spring: 35 mm (1.4”) |
| Weight | 0.84 kg (1.8 lbs) |
| Termination | SMA Plug, 5 m (16’) RG58 Cable Tail (05603) |
| Construction | Fiberglass Radome, Black Coated Stainless-Steel Spring |
