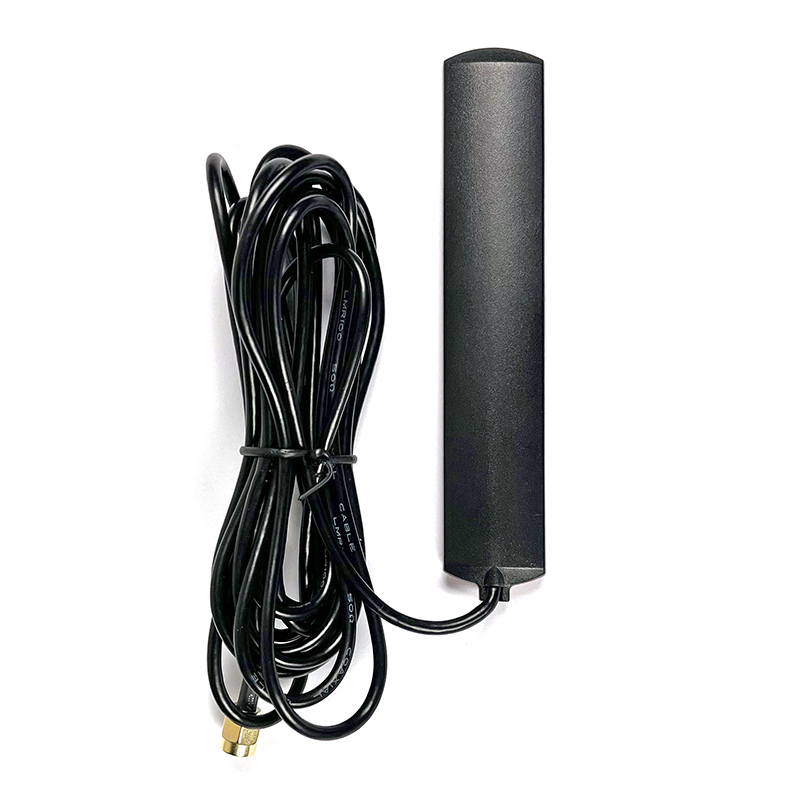

Benelec Cellular 5G Adhesive / Stick-on Dipole Antenna
The 024571G3 is a compact, medium gain 5G adhesive antenna suited for use in the bands 690 – 960 & 1710 – 2700 & 3500 – 3700 MHz. It comes standard with flexible 3 meters of low loss cable terminating in an SMA male connector & is suited for mounting onto a glass panel. This antenna can be used inside or outside, in fixed applications. The 024571G3 is decoupled from the feed cable and offers a clean radiation pattern at all frequencies.
- Description
- Specifications
Description
Cellular 5G Adhesive Antenna | Stick-on Dipole Antenna
APPLICATIONS
Fixed solutions suited for use in the 5G cellular bands  690 – 960, 1710 – 2700 & 3500 – 3700 MHz, Suited for glass mount
FEATURES
- Cellular 5G
- Reliable, Durable and Compact
- Can be used inside or outside
- Linear polarisation
- 3m of low loss cable
- Terminating in an SMA male connector
- Ground Plane Independent
- Adhesive Mount, May be mounted vertically or horizontally

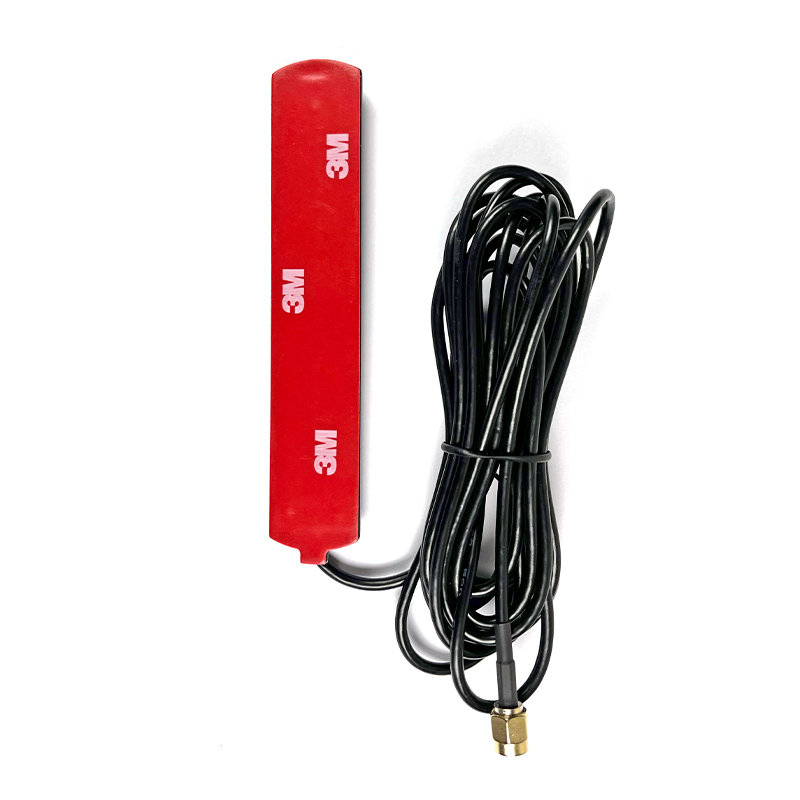

- 3M black double-sided tape
- ROHS
WARRANTY
 3 Years (Please refer to Benelec Terms & Conditions)
| Frequency | @ 690 – 960 MHz, Tuned Bandwidth 270 MHz;
@1710 – 2700 MHz, Tuned Bandwidth 990 MHz; @ 3300 – 3800 MHz, Tuned Bandwidth 500 MHz |
| VSWR | 2.0:1 max |
| Gain | 4 dBi typ |
| Impendence | 50 Ω nominal |
| Radiation Pattern | Omni-Directional |
| Max Input Power | 50 W |
| Dimensions | 119 (L) x 22 (W) x 5 (T) mm |
| Weight | 45 g |
| Termination | 3m LL100 Cable, SMA Male |
