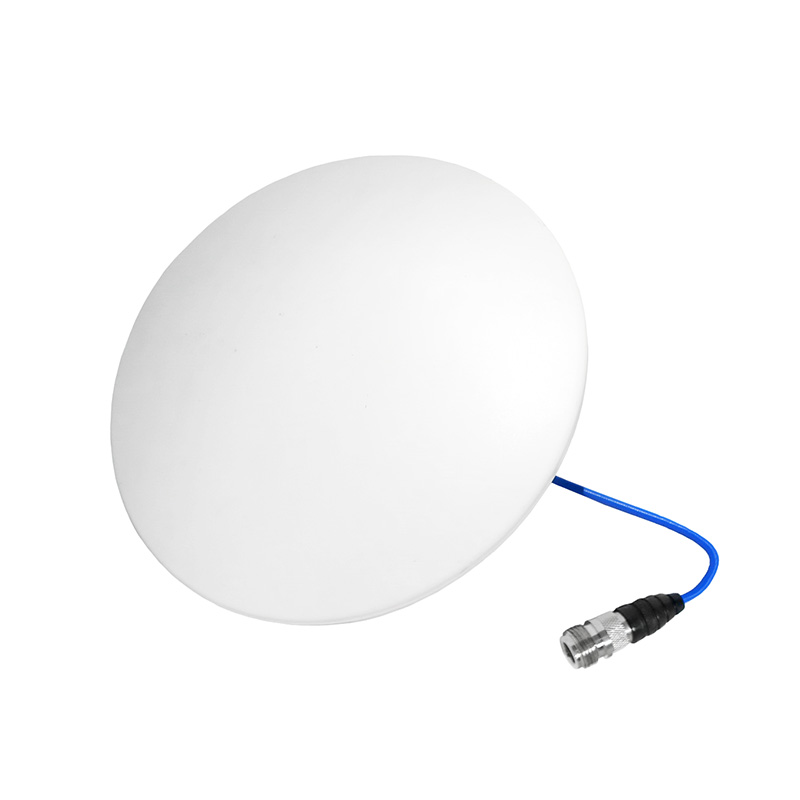

Benelec Cellular 5G Wi-Fi Indoor Ultra-Slim Ceiling Antenna, N Socket
The Benelec Cellular 5G Wi-Fi Ultra-Slim Indoor Ceiling Antenna is designed for indoor use, covering a wide frequency range of 698 MHz to 6000 MHz for GSM, CDMA, WCDMA, LTE, and Wi-Fi applications.
- Description
- Specifications
Description
Benelec Cellular 5G Wi-Fi Ultra-Slim Indoor Ceiling Antenna, N Socket
The 024513N offers high gain, low VSWR, and low PIM performance, with a lightweight, corrosion-resistant, and aesthetically appealing design. The antenna has a N Socket connector, is DC-grounded for lightning protection and features a 360° horizontal beamwidth with robust construction using aluminum and ABS materials, supporting a maximum input power of 50W.
APPLICATIONS
- GSM/CDMA/PCS/CDMA2000/WCDMA/TD-SCDMA/TD-LTE/FDD-LTE SYSTEM
- 698-960/1710-6000MHz Band
- Indoor Signal Coverage
FEATURES Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
- High Gain, Low PIM, Low VSWR
- Small size, beautiful appearance, lightweight
- DC Ground, corrosion resistance, anti-aging
TUNING
Factory Tuned, no further tuning required
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
| Frequency Range (MHz) | 698 | 806 | 1710 | 2300 | 4900 |
| -806 | -960 | -2170 | -2700 | -6000 | |
| Polarisation | H | H | H | H | H |
| Gain (dBi) | 4.8 | 5 | 6.3 | 4.6 | 6.3 |
| Horizontal Beam Width (°) | 360 | 360 | 360 | 360 | 360 |
| VSWR | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
| Intermodulation IM3 (dBc) | ≤-153(@2*43 dBm) | ||||
| Impedance (Ω) | 50 | ||||
| Maximum Input Power (W) | 50 | ||||
| Lightning Protection | DC Ground | ||||
| Connector | N-Female | ||||
| Connector Position | With Cable | ||||
| Size (mm) | φ213*18.5 | ||||
| Net Weight (kg) | 0.26 | ||||
| Gross Weight (kg) | 0.5 | ||||
| Rated Wind Velocity (m/s) | 36.9 | ||||
| Reflector Material | Aluminium | ||||
| Radome Material | ABS | ||||
| Radome Colour | White | ||||
| Operating Temperature (℃) | -40 ~ 55 | ||||
