Benelec VHF/UHF Dual Band Mobile Ground Plane Antenna 138-162MHz / 450-510MHz, 5/16”26 TPI Female
AUD Includes GST

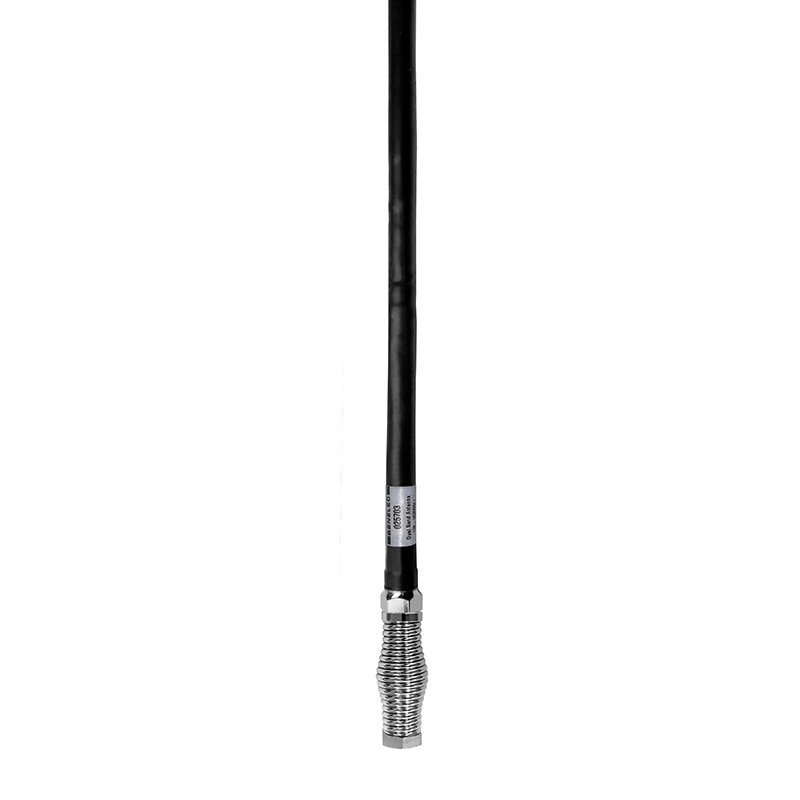

The 025703 antenna is a unity gain dual-band ground-dependent antenna covering both the bands 138 – 162 MHz and 450 – 510 MHz It comes complete with a flexible radiator and stainless-steel spring. It is ideally suited to emergency services. This antenna has dual-band integration and comes with one base termination for both bands.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec VHF/UHF Dual Band Mobile Ground Plane Antenna
138-162MHz / 450-510MHz
FEATURES
- Dual band operation
- Broad bandwidth
- Stainless-steel barrel spring
- Rugged flexible radiator
- Mounting to standard UHF bases e.g. 02740
- Factory tuned; no further tuning required
- Designed and manufactured in Australia
APPLICATION
Emergency services mobile communication.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 138 – 162 MHz and 450 – 510 MHz |
| Gain | Unity gain, peak at 45°–60° elevation |
| VSWR | < 2:1 both bands |
| Impedance | 50 Ω nominal |
| Polarisation | Vertical |
| E-Plane 3dB Beamwidth | 30° deg, 60° deg |
| H-Plane 3dB Beamwidth | 360° deg both bands |
| Power | 50 W |
| Termination | 5/16”26 TPI female (suitable for UHF base 02740) |
| Length | 460 mm |
| Net Weight | 0.6 kg |
