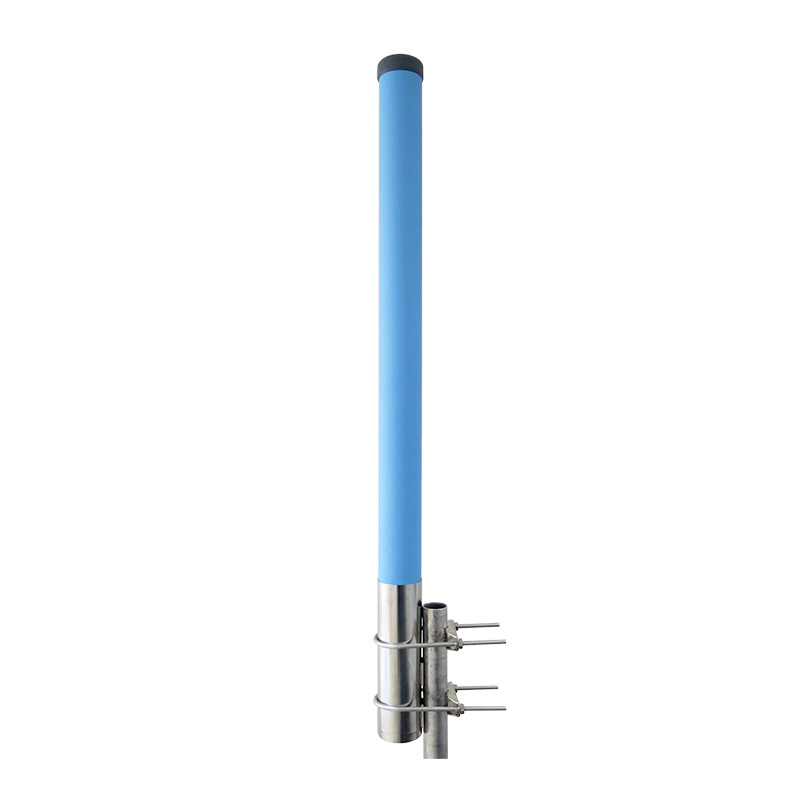

Benelec VHF High Band Base Broadband Dipole Antenna 144-174MHz, N Socket
AUD Includes GST
The 02544A is a professional vertical base station antenna designed for operation across the 144–174 MHz band. It delivers a stable and reliable radiation pattern with a VSWR of less than 1.5 throughout the entire frequency range, ensuring efficient signal transmission.
Housed in a rugged, heavy-duty fiberglass radome, the antenna is engineered to withstand high wind loading and harsh outdoor conditions. It is fitted with a fixed N-type female connector for secure and dependable installation.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec VHF High Band Base Broadband Dipole Antenna
144-174MHz
FEATURES
- Ideal for Base Station applications
- Fully enclosed in a heavy-duty radome
- Weather and corrosion resistance
- Electropolished SS316 stainless-steel mounting tube and bracket
- DC grounded
- Fixed N connector
- Factory tuned; no further tuning required
- Designed and manufactured in Australia
APPLICATION
Base Station applications.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 144–174MHz |
| Gain | 2.5dBi average (0dBd) |
| VSWR | < 1.5:1 across entire band |
| Impedance | 50 Ω |
| Polarisation | Vertical |
| Grounding | D.C grounded |
| E-Plane 3dB Beamwidth | 93° |
| H-Plane 3dB Beamwidth | 360° |
| Power | 500 W |
| Termination | N socket (fixed) |
| Wind Loading | @ 160 km/h (100 MPH)
@ 240 km/h (150 MPH) @ 320 km/h (200 MPH) 82 N/8.36 kgf, 183 N/18.66 kgf, 307 N/31.3 kgf w/o ice; 117 N/11.93 kgf, 268 N/27.32 kgf, 409 N/41.7 kgf w/ 0.5” ice |
| Length | 1590 mm (62.6”) |
| Width | 96 mm (3.8”) |
| Net Weight | 4.75 kg (12.8 lbs) |
