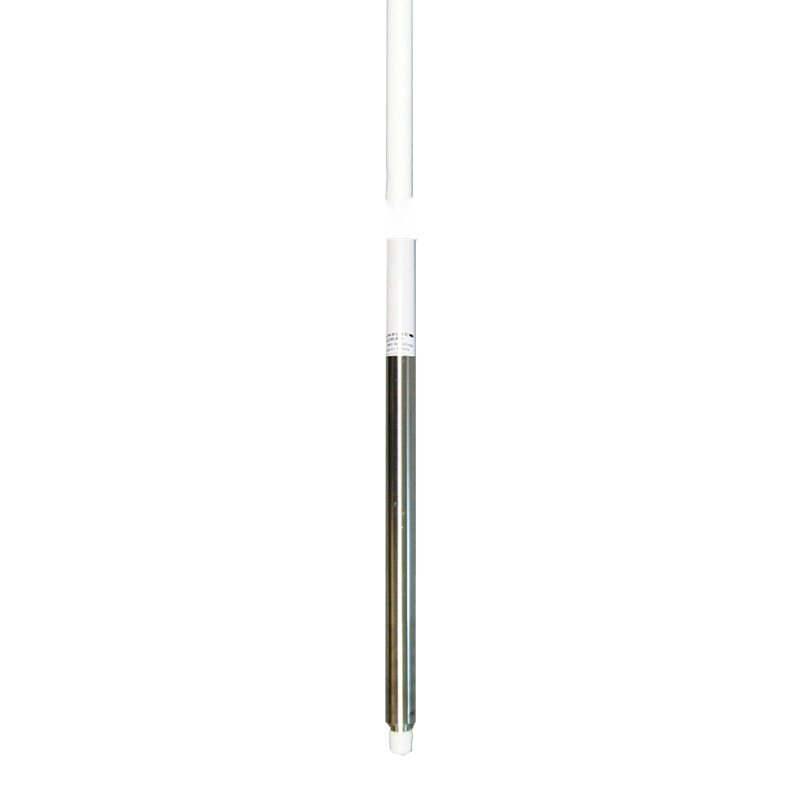

Benelec VHF 3dBd High-band Base Colinear Simplex Antenna 148-174MHz, N Plug
AUD Includes GST
The 02546 antenna is a 3 dBd gain simplex base station antenna covering the 148–174 MHz band. It provides 1% bandwidth, making it suitable for applications requiring closely spaced channels. The antenna delivers a stable radiation pattern with negligible horizontal tilt, and its robust construction ensures long-lasting, reliable performance.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec VHF 3dBd High-band Base Colinear Simplex Antenna
148-174MHz | N Socket
FEATURES
- White, smooth, glossy, fiberglass radome
- Stainless-steel mounting tube
- DC grounding
- Factory tuned, no further tuning required
- Designed and manufactured in Australia
APPLICATION
- Simplex – base station applications
- Base coverage for a specified section of 148 – 174 MHz radio band
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 148 – 174 MHz |
| Gain | 3 dBd (gain over a half wave dipole antenna) |
| VSWR | <1.5:1 (1% bandwidth) |
| Impedance | 50 Ω |
| Radiation | Omni-directional |
| Power | 50 W |
| Termination | N socket connector |
| Length | 3.2 m @ 146 MHz |
| Diameter | 31.75 mm |
| Net Weight | 3.2 kg |
