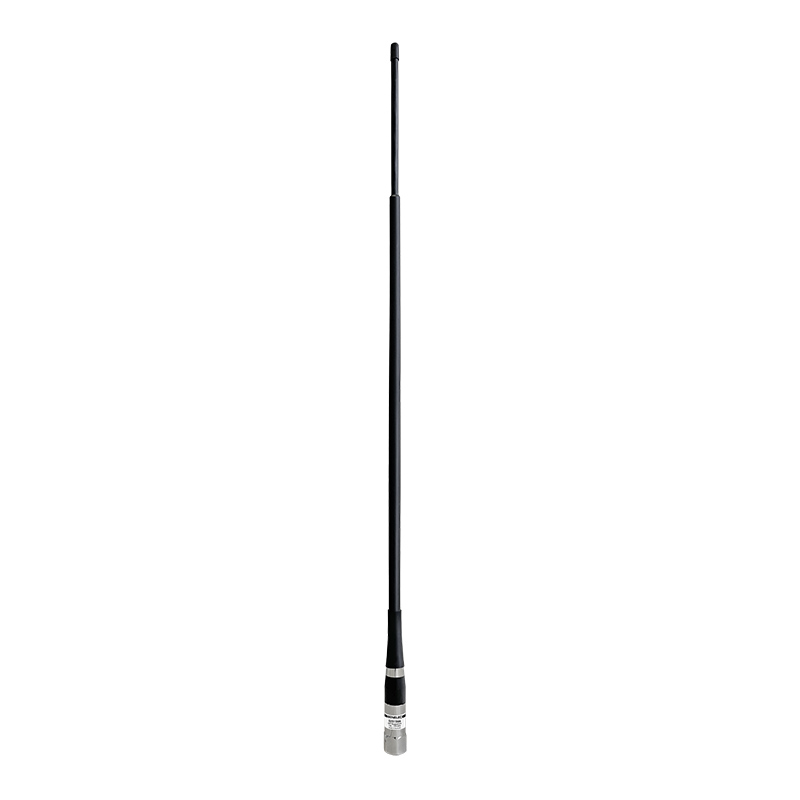

Benelec Ultra Rugged VHF High Band ½ Wave GPI Mobile Antenna M Base 148-174MHz, UHF Plug
AUD Includes GST
The 02515M4 is a heavy-duty, broadband stainless steel flexible mobile antenna designed to cover the full 148–174 MHz commercial radio band. Engineered for mining applications, it features a durable radiator mounted on a high-impact base. The antenna delivers a stable radiation pattern with minimal horizontal tilt and excellent decoupling from the coaxial feed system, ensuring strong ground independence and distortion-free performance. It is compatible with a variety of mounting accessories and operates effectively on both metal and non-metal surfaces. The M base termination allows for re-use and easy transport in mobile applications.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec Ultra Rugged VHF High Band ½ Wave GPI Mobile Antenna M Base
148-174MHz
FEATURES
- Rugged matching section
- Removable M base mounting
- Rugged stainless-steel radiator
- Reliable and durable
- Factory tuned; no further tuning required
- Designed and manufactured in Australia
APPLICATION
- Radiation coverage for VHF mobile vehicular applications
- Low-cost base station applications
- Harsh environments e.g. mining
MOUNTING
Any Mobile Mounting bracket that will accommodate a Standard base.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
10109S base and lead supplied separately.
| Frequency | 148 – 174 MHz |
| Gain | Unity Gain (nom 2.15 dBi) |
| VSWR | <2.0:1 |
| Impedance | 50 Ω Nominal |
| Radiation | Omni Directional |
| E Plane Beamwidth | 80 Deg |
| Tuned Bandwidth | 38 MHz |
| Termination | UHF Plug to M Base |
| Power Rating | 50w |
| Length | 890 mm |
| Net Weight | 460 g |
| Construction | Stainless Steel Radiator, Delrin |
