Benelec UHF Mobile 1/2 Wave Flexi Top Antenna 380 – 520MHz, 5/16” 26TPI Female
AUD Includes GST

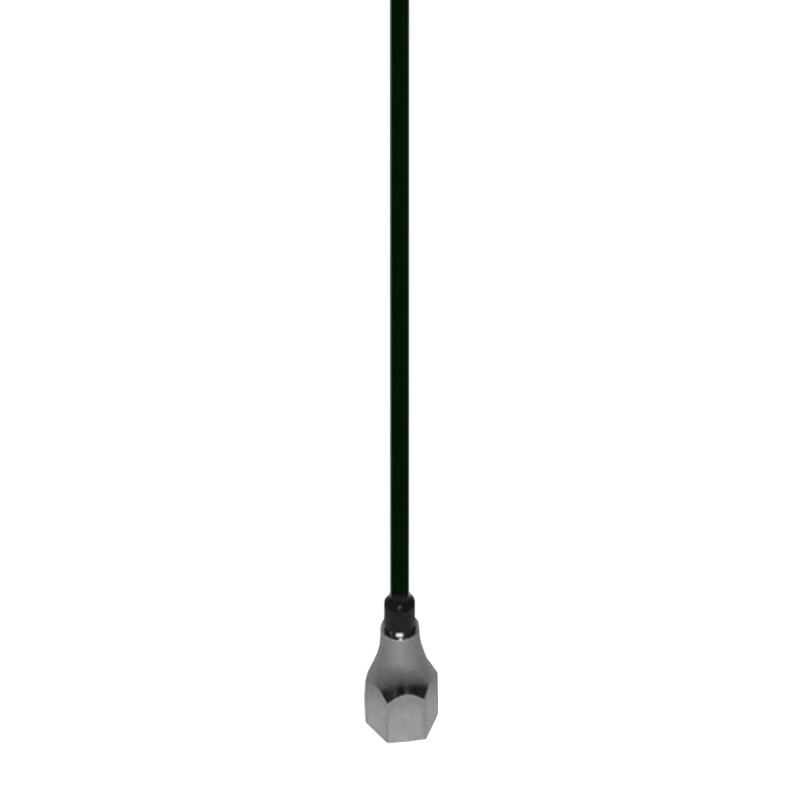

The 02633FT is 2.15dBi gain, roof mount flexible Antenna covering the 380 – 520 MHz section of the UHF commercial Mobile Radio Bands. The 02633FT antenna offers a genuine 2.15dBi* of gain on the horizon across the whole designated band of operation when installed on a Ground Plane. It is designed for optimum performance on the 02740 mobile base and covers the entire respective designated bands of operation under 1.5:1 VSWR. Its’ construction with poly coating ensures smooth strong and flexible finish.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF Mobile 1/2 Wave Flexi Top Antenna
380 – 520MHz
FEATURES
- Smooth black poly outer jacket
- Very flexible
- Compact
- Durable
- May be tuned by trimming for higher frequencies*
- Designed and manufactured in Australia
APPLICATION
Base station applications – multi coupling Mobile coverage for 380 – 520 MHz section of UHF Commercial Radio Band.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 380 – 520MHz |
| Gain | 2.15dBi |
| Impedance | 50 Ω |
| Radiation Pattern | Omni Directional |
| E-Plane Beamwidth | 60° Deg |
| Termination | 5/16” 26TPI female ferrule plated brass |
| Antenna Length | 285 mm |
| Net Weight | 45g |
