Benelec UHF 6dBd Spot Frequency Base Antenna 2.5% Bandwidth 400-520MHz, N Socket
AUD Includes GST

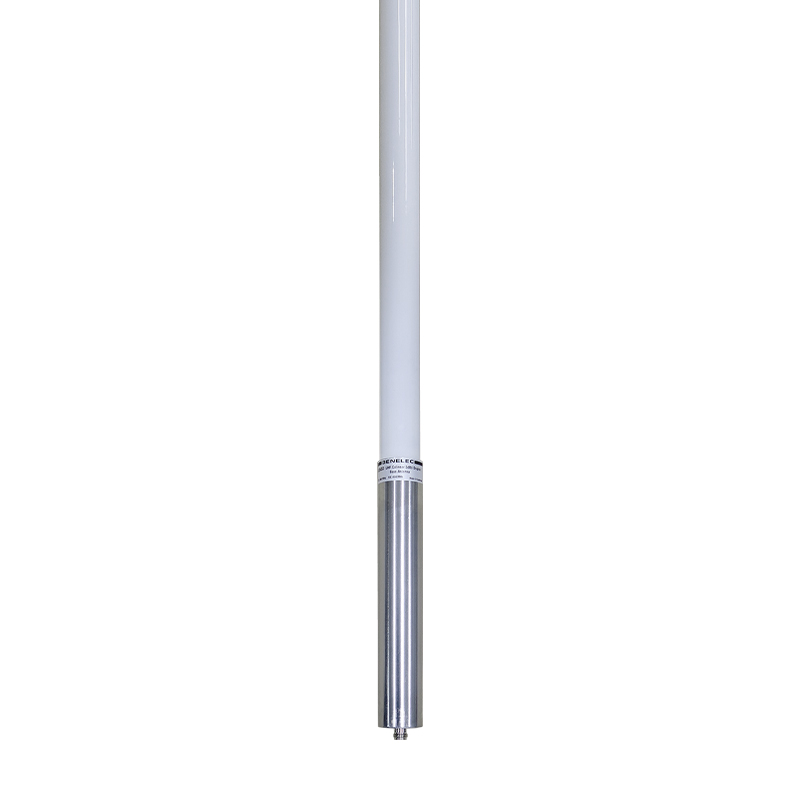

The 02647D is a 6 dBd gain base station antenna designed for the UHF commercial radio band. Its high gain enables extended coverage over distances typically beyond the reach of lower-gain antennas. The antenna delivers a stable radiation pattern with minimal horizontal tilt, and its robust construction ensures long-term reliability. A smooth, white tapered radome provides a clean and professional appearance.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF 6dBd Spot Frequency Base Antenna
2.5% Bandwidth | 400-520MHz | N Socket
FEATURES
- Covers the UHF 400 – 520 MHz band
- 6 dBd gain
- Stable radiation pattern
- Durable and robust construction
- Smooth white radome
- Excellent longevity and performance
- Factory tuned at specified 3% segment (~10 MHz); no further tuning required
- Designed and manufactured in Australia
APPLICATION
Base coverage for simplex and duplex UHF commercial radio band.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 400 – 520 MHz
(tuned at 3% segment) |
| Bandwidth | 3% |
| Gain | 6 dBd (8.15 dBi) |
| VSWR | <1.5:1 10 MHz BW |
| Impedance | 50 Ω nominal |
| Polarisation | Vertical |
| Radiation Pattern | Omni-directional |
| E-Plane Beamwidth | 16° |
| Power | 150 W |
| Termination | N socket |
| Wind Loading | 20.98 kg (205.76 N) @160 KPH
(antenna tuned @ 315 MHz) |
| Projected Wind Area | 0.19007 SQM |
| Length | 2670 – 3681 mm |
| Construction | Stainless-steel / brass / fibreglass |
| Mounting | Ø 38 mm |
| Net Weight | 3.2 kg |
