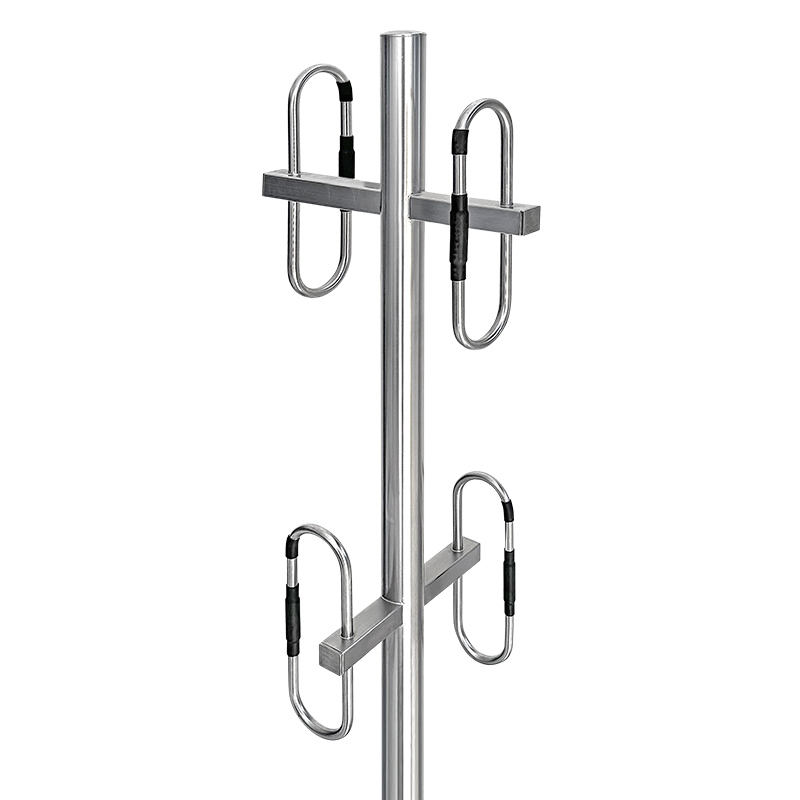

Benelec UHF 6dBd Base Omni-Dipole Array Antenna 380-490MHz, N Socket
AUD Includes GST
The 02681V4 Antenna is an omni-directional single stack array covering the full 380–490 MHz band, making it ideal for transmitter and receiver multi-coupling applications requiring wide bandwidth. It delivers a strong 6 dBd of gain on the horizon for reliable performance in demanding communication environments. Built from high-grade stainless steel with all-welded construction, it offers exceptional durability and weather resistance. Fully enclosed internal cabling ensures protection and longevity, while factory tuning guarantees optimal performance with no further adjustment required. Proudly designed and manufactured in Australia.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF 6dBd Base Omni-Dipole Array Antenna
380-490 MHz | N Socket
FEATURES
- All electropolished stainless-steel
- Full 380-490MHz bandwidth
- All welded construction
- 6 dBd of gain
- Internal cabling
- Factory tuned; no further tuning required
- Designed and manufactured in Australia
APPLICATION
Base station applications – multi-coupling.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 380-490 MHz |
| Gain | 6 dBd (8 dBi) |
| VSWR | < 1.5:1 |
| Impedance | 50 Ω nominal |
| Polarisation | Vertical |
| Radiation | Omni-directional |
| Power | 500 W |
| Cable | RG-213 cable tail (3.6 m) |
| Termination | N socket connector |
| Wind Loading | 29.21 kg (286.4628 N) @ 160 kph |
| Base Material | Stainless-steel |
| Length | 3800 mm |
| Width | 300 mm |
| Height | 90 mm |
| Net Weight | 12 kg |
