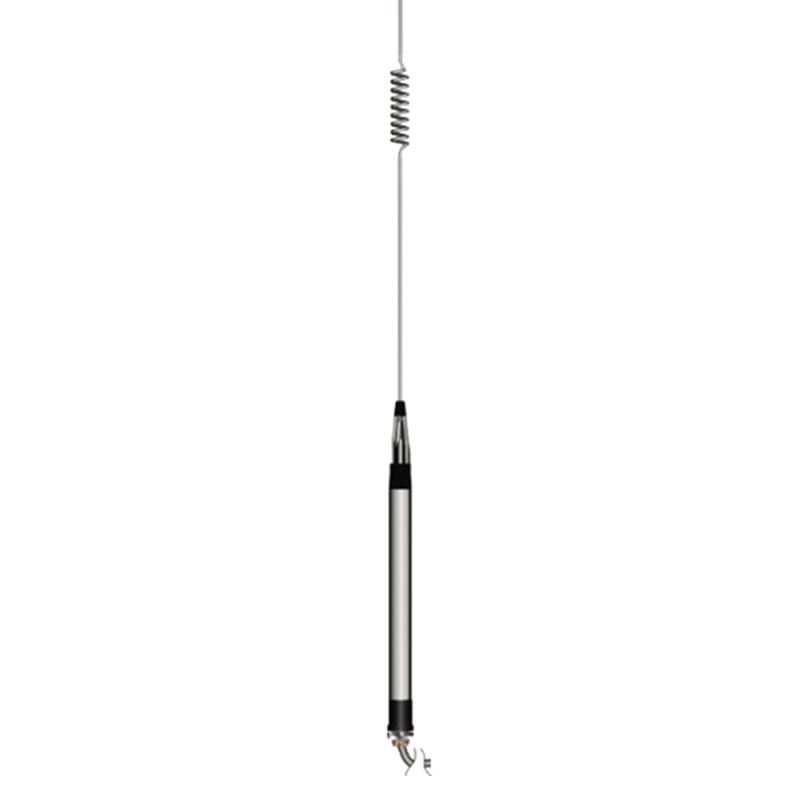

Benelec UHF 6.5dBi Mobile Elevated Feed Antenna 450-470MHz, FME Socket
AUD Includes GST
The 02637V series antenna is a Ground Independent, 6.5 dB Gain, mobile antenna covering the UHF 450–470MHz Band. Its high gain produces exceptional radio range coverage over distances not normally serviced by lower gain antennas. Its Ground Independence maintains a stable radiation pattern in all mobile mounting applications. Its robust construction ensures excellent longevity and performance. Ideal for mounting in applications where ground plane area is non-existent or severely reduced.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF 6.5dBi Mobile Elevated Feed Antenna
450-470MHz | FME Socket
FEATURES
- Ground plane independent
- 5*dB Gain
- Heavy duty stainless-steel construction
- Pre-terminated (no special tools required)
- Complete kit including 6.5dB* antenna, elevated feed base, 5 m RG58 lead, FME socket fitted & FME Plug -UHF Plug
- Made using high quality components
- Factory tuned; requires no further tuning
- Designed and manufactured in Australia
APPLICATION
Mobile coverage for the UHF 450–470MHz Band
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 450 – 470 MHz |
| Gain | 6.5dB* |
| VSWR | <1.7:1 |
| Impedance | 50 Ω (Nominal) |
| Radiation Pattern | Omni directional |
| E Plane Beamwidth | 20° |
| Power | 100 W |
| Cable | 5m RG58 |
| Termination | FME Socket + FME Plug–UHF Plug |
| Length | 920 mm |
| Construction | Stainless-steel base & high gain whip top |
| Net Weight | 750 g |
