Benelec UHF 4.5dB Mobile Ground Plane Antenna Kit 470-490MHz
AUD Includes GST

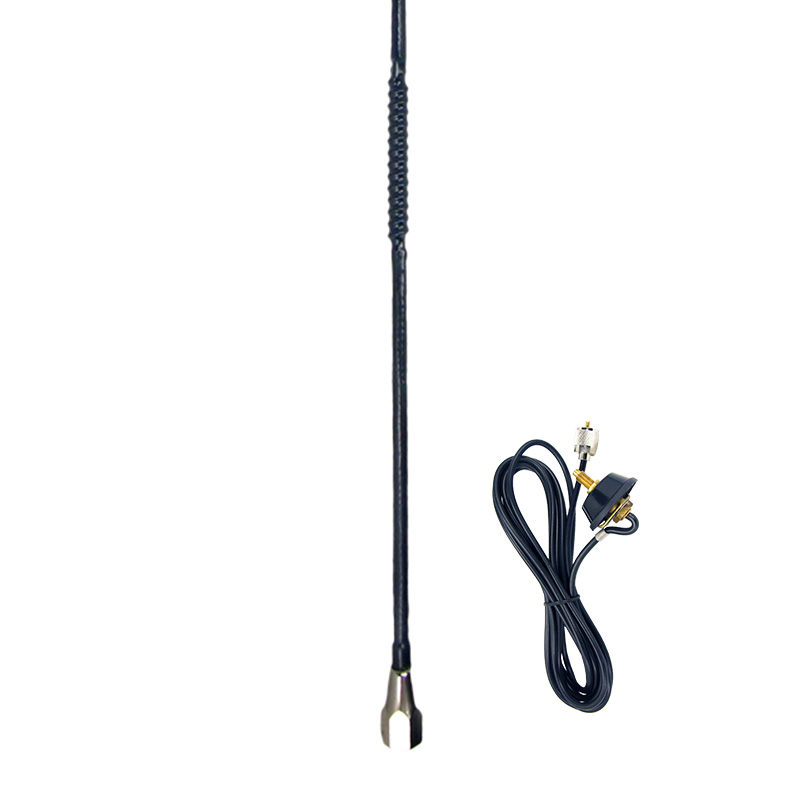

02623K is a 4.5dB gain, roof mount Fibreglass Antenna Kit covering the 470-490 section of the UHF commercial Mobile Radio Bands. When installed on a Ground Plane, the 02623K antenna kit offers a genuine 4.5dB* of gain on the horizon across the whole designated band of operation. It is designed for optimum performance on the mobile base (included in the kit) and covers the entire respective designated bands of operation under 1.5:1 VSWR. Its fibreglass construction with heat shrink fit coating ensures a smooth, strong, and flexible finish. The kit includes a 3.6m RG58 lead (PN: 10108A), factory-terminated with a UHF plug for straightforward vehicle installation.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF 4.5dB Mobile Ground Plane Antenna Kit
470-490MHz
FEATURES
- Solid fibreglass rod, copper braided radiators
- Smooth black heatshrink outer jacket
- Flexible
- Compact
- Durable
- Factory tuned; requires no further tuning**
- Designed and manufactured in Australia
APPLICATION
Mobile coverage for 470-490MHz section of UHF commercial radio band.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 470 – 490 MHz |
| Gain | 4.5 *dB |
| Impedance | 50 Ω |
| Radiation Pattern | Omni-directional |
| E-Plane Beamwidth | 15° |
| Termination | UHF base on 3.6 m RG58C/U cable fitted with UHF plug (PL-259) |
| Length | 650 mm |
| Net Weight | 280 g |
