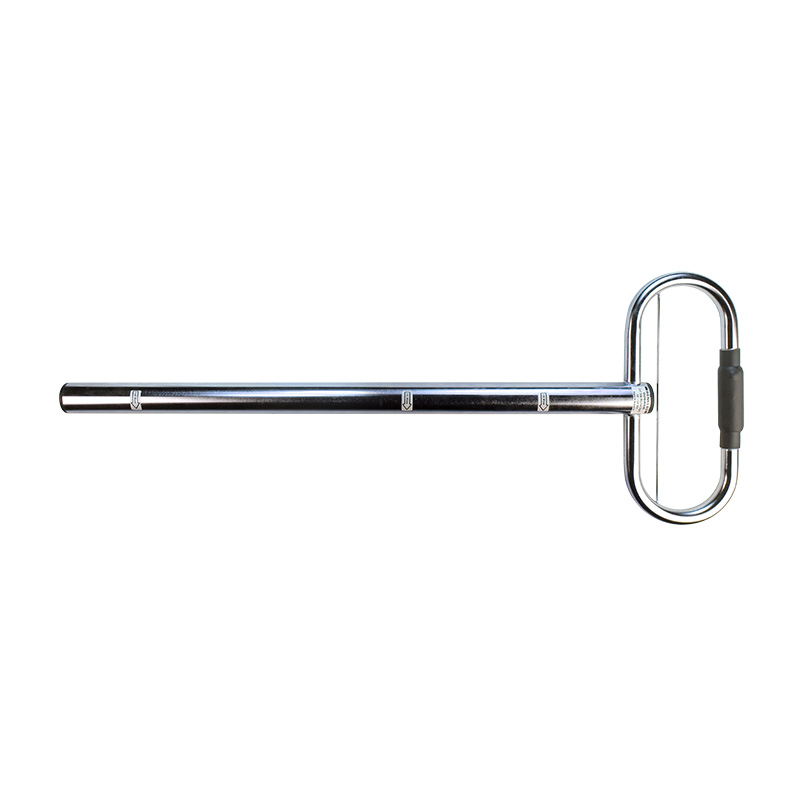

Benelec UHF 2.5dBd Long Boom Base Folded Dipole Antenna with Stainless Steel Bracket 360-520MHz, N Plug
AUD Includes GST
The 02680A is a rugged side-mount broadband dipole antenna engineered for reliable performance across the 360–520 MHz band. Constructed from fully welded, electropolished stainless steel, it is designed to endure demanding environments and long-term outdoor use.
This antenna supports three mounting configurations—¼, ½, and full-wavelength spacing from the vertical mounting pole—providing flexibility in tailoring the radiation pattern within the H-plane to meet specific coverage requirements.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF 1-2.5dBd Long Boom Base Folded Dipole Antenna
with Stainless Steel Bracket | 360-520MHz | N Plug
FEATURES
- All electropolished stainless-steel
- Broad H-plane pattern
- Rugged construction
- Broad VSWR bandwidth
- Mounting markers ¼, ½ and 1 wavelength
- Right angle stainless-steel mounting bracket included
- Factory tuned; requires no further tuning
- Designed and manufactured in Australia
APPLICATION
Wide beamwidth, low gain, base station.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 360 – 520 MHz |
| Gain | 1 – 2.5 dBd |
| VSWR | < 1.5:1 |
| Impedance | 50 Ω nominal |
| Polarisation | Vertical |
| E-Plane Beamwidth | 80° |
| H-Plane Beamwidth | Directional – see radiation patterns |
| Power | 500 W |
| Termination | N plug |
| Cable | RG-214 cable tail |
| Wind Loading | 162.4 kph (3.471 kN) |
| Base Material | Stainless-steel |
| Length | 820 mm |
| Net Weight | 1.5 kg |
