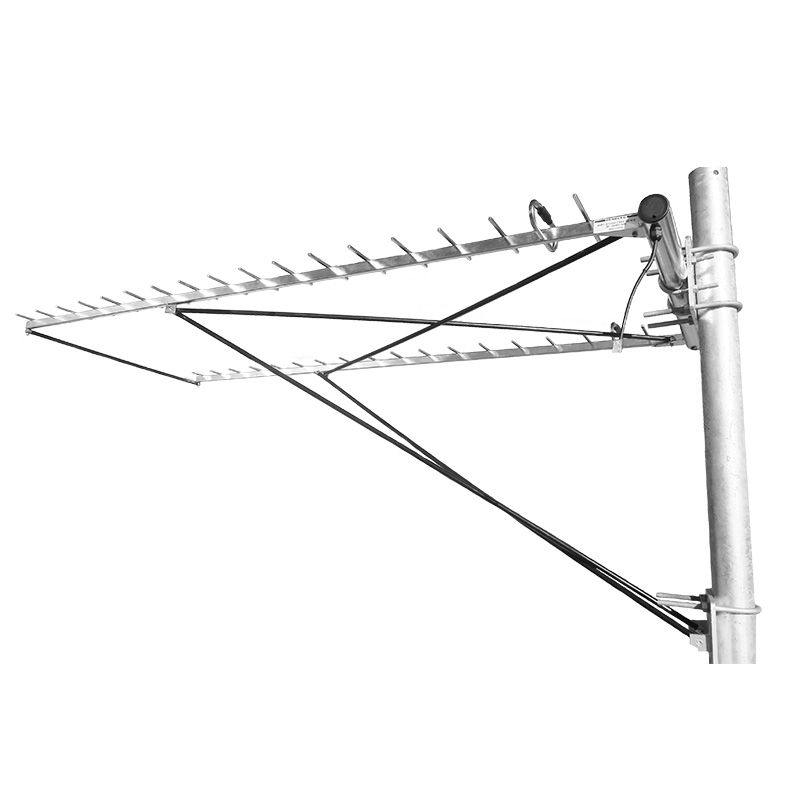

Benelec UHF 17dBd 18 Element Dual Yagi Antenna Array 804-854MHz, N Socket
AUD Includes GST
The 024872 is a high-gain, 18.8 dBi, 18-element dual-stack stainless-steel Yagi array designed for operation in the 804–854 MHz band. Its high gain provides excellent radio link coverage.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF 17dBd 18 Element Dual Array Yagi Antenna
804-854MHz | N Socket
FEATURES
- All stainless-steel
- Full band coverage
- Low VSWR across band
- All welded construction
- Two galvanised brackets included
- Factory tuned, no further tuning required
- Designed and manufactured in Australia
APPLICATION
Link applications.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 804 – 854 MHz |
| Gain | 17 dBd, 19 dBi (18.8 dBi mid band) |
| VSWR | < 1.5:1 entire band |
| Impedance | 50 Ω nominal |
| Polarisation | Horizontal |
| F/B Ratio | 20 dB (mid band) |
| Termination | N socket |
| Base Material | All stainless-steel |
| Power Rating | 200 W |
| E Plane 3 dB Beamwidth | 13.4° |
| H Plane 3 dB Beamwidth | 30° |
| Projected Area | 0.22327 sqm |
| Wind Loading | 241.7 N @ 160 kph |
| Length | 1900 mm |
| Width | 1000 mm (max.) |
| Net Weight | 16.0 kg |
