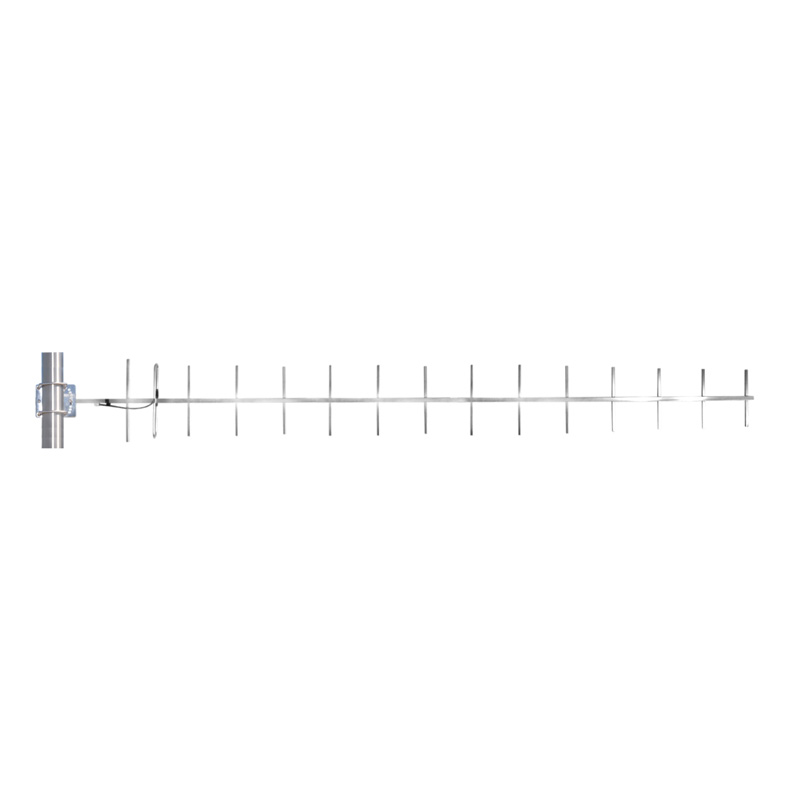

Benelec UHF 12dBd 15 Element Yagi Antenna with Stainless Steel Bracket 450-470MHz, N Socket
AUD Includes GST
The 02684V is a 12 dBd (14 dBi) gain, 15-element, all–stainless steel directional Yagi antenna designed for operation in the 450–470 MHz radio band. Its robust construction ensures long service life and reliable performance.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF 12dBd 15 Element Yagi with Stainless Steel Bracket
450-470MHz | N Socket
FEATURES
- High gain
- Stainless-steel construction
- Narrow beamwidth
- DC grounding
- Adjustable mount ±20° to the horizontal
- Factory tuned; no further tuning required
- Designed and manufactured in Australia
APPLICATION
Radio links.
MOUNTING
Heavy Duty Stainless Steel Tilted Angled Mounting Bracket (included)
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 450 – 470 MHz |
| Gain | 12 dBd, 14.15 dBi (mid band) |
| VSWR | < 1.5:1 across entire band |
| Impedance | 50 Ω nominal |
| Polarisation | Directional |
| F/B Ratio | -20 dB (mid band) |
| Termination | N socket connector |
| Base Material | All stainless-steel |
| Power Rating | 100 W |
| Projected Area | 0.0189 sqm |
| E Plane 3 dB Beamwidth | 35.5° |
| H Plane 3 dB Beamwidth | 40° |
| Wind Loading | 20.87 kg (204.6 N) @ 160 kph |
| Length | 2156 mm |
| Width | 332 mm (max.) |
| Net Weight | 2.5 kg |
