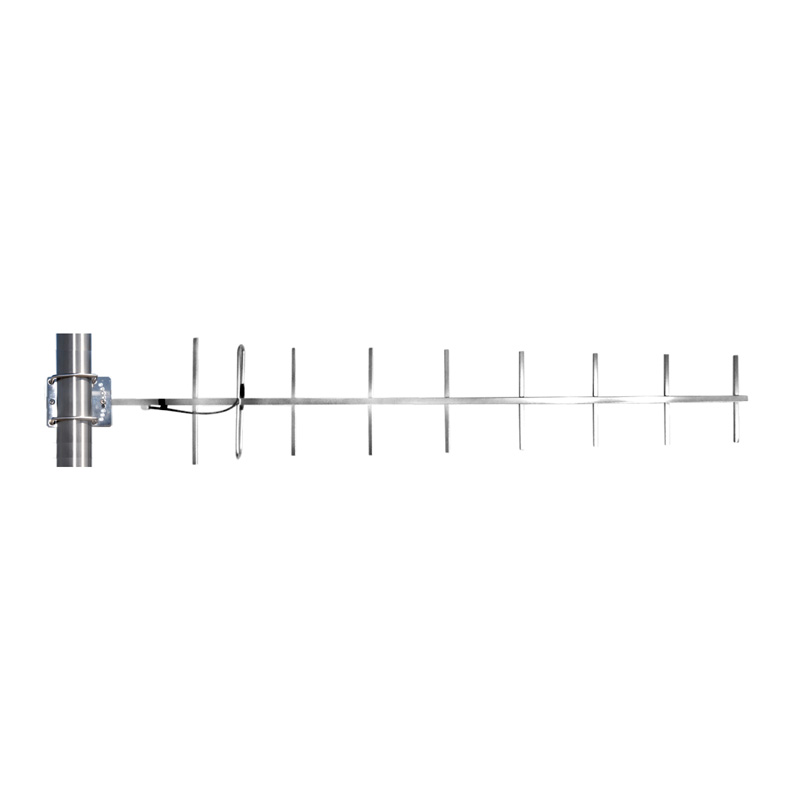

Benelec UHF 11dBd 9 Element Yagi Antenna with Stainless Steel Bracket 490-510MHz, N Socket
AUD Includes GST
The 02683Y is a high-performance directional antenna designed to deliver exceptional radio link coverage with a stable radiation pattern across the entire band. All elements are fully welded to ensure robust construction and minimise intermodulation. Electrical connections are expertly soldered directly to the elements to further reduce potential noise. The antenna is electropolished for maximum corrosion resistance and is built to withstand extreme weather conditions, extending its longevity without compromising performance.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF 11dBd 9 Element Yagi Antenna with Stainless Steel Bracket
490 – 510 MHz | N Socket
FEATURES
- UHF 490 – 510 MHz Band
- 11 dBd Gain
- All-welded, electropolished stainless steel
- Intermodulation low noise construction
- Weather and corrosion resistant
- Durable construction
- Designed and manufactured in Australia
APPLICATION
Link coverage for the Commercial Radio Band
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 490-510 MHz |
| Tuned Bandwidth | 20 MHz |
| F/B Ratio | 17 dB |
| Gain | 11 dBd |
| Impedance | 50 Ω (Nominal) |
| Termination | Cable Tail, N Socket receptacle |
| Construction | All welded stainless-steel |
| E Plane Beamwidth | 45° |
| H Plane Beamwidth | 36° |
| Length | 1507 mm |
| Width | 280 mm |
| Net Weight | 3.50 kg (Bracket included) |
