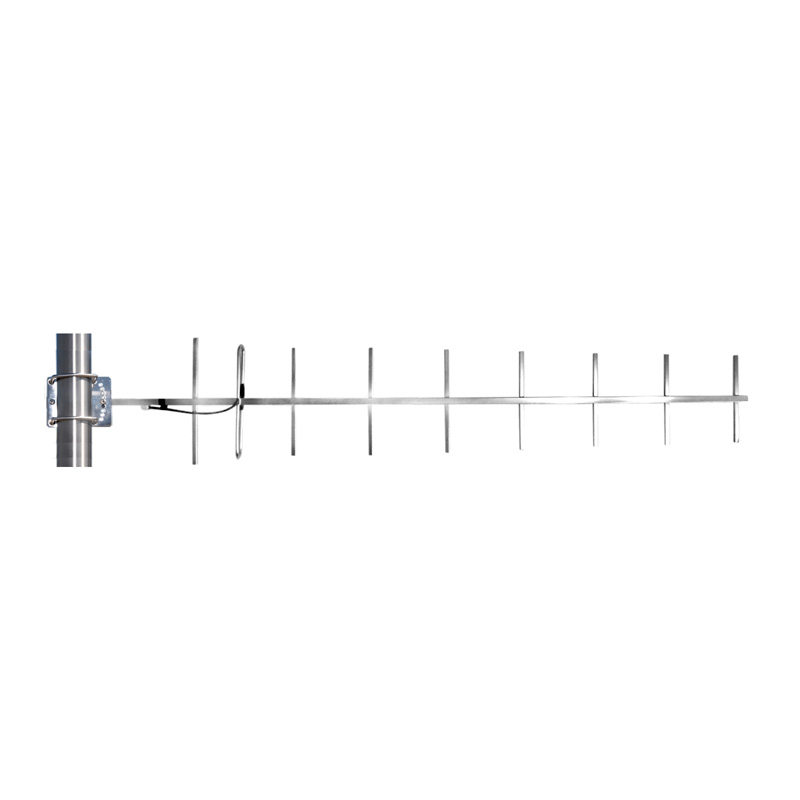

Benelec UHF 11dBd 9 Element Yagi Antenna with Stainless Steel Bracket 450-470MHz, N Socket
AUD Includes GST
The 02683V is a high-performance directional antenna that delivers exceptional radio link coverage with a stable radiation pattern across the entire band. All elements are fully welded to ensure robust construction and minimal intermodulation. Electrical connections are precisely soldered directly to the elements to further reduce potential noise. The antenna is electropolished for maximum corrosion resistance and is built to withstand extreme weather conditions, ensuring long-term reliability without performance degradation.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF 11dBd 9 Element Yagi Antenna with Stainless Steel Bracket
450 – 470 MHz | N Socket
FEATURES
- UHF 450 – 470 MHz Band
- 11 dBd Gain
- All-welded, electropolished stainless steel
- Intermodulation low noise construction
- Weather and corrosion resistant
- Durable construction
- Adjustable mount ±20° to the horizontal
- Designed and manufactured in Australia
APPLICATION
Link coverage for the Commercial Radio Band.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 450-470 MHz |
| Tuned Bandwidth | 20 MHz |
| F/B Ratio | 17 dB |
| Gain | 11 dBd |
| Impedance | 50 Ω (Nominal) |
| Radiation Pattern | Directional |
| Termination | Cable Tail, N Socket receptacle |
| Power Rating | 200 W |
| Total Projected Area | 0.14141 (includes drag coefficient) |
| Wind Loading | 15.58KG/152.78NKG @ 160kph |
| Construction | All welded stainless-steel |
| E Plane Beamwidth | 45° |
| H Plane Beamwidth | 36° |
| Length | 1700 mm |
| Width | 305 mm |
| Net Weight | 3.5 kg |
