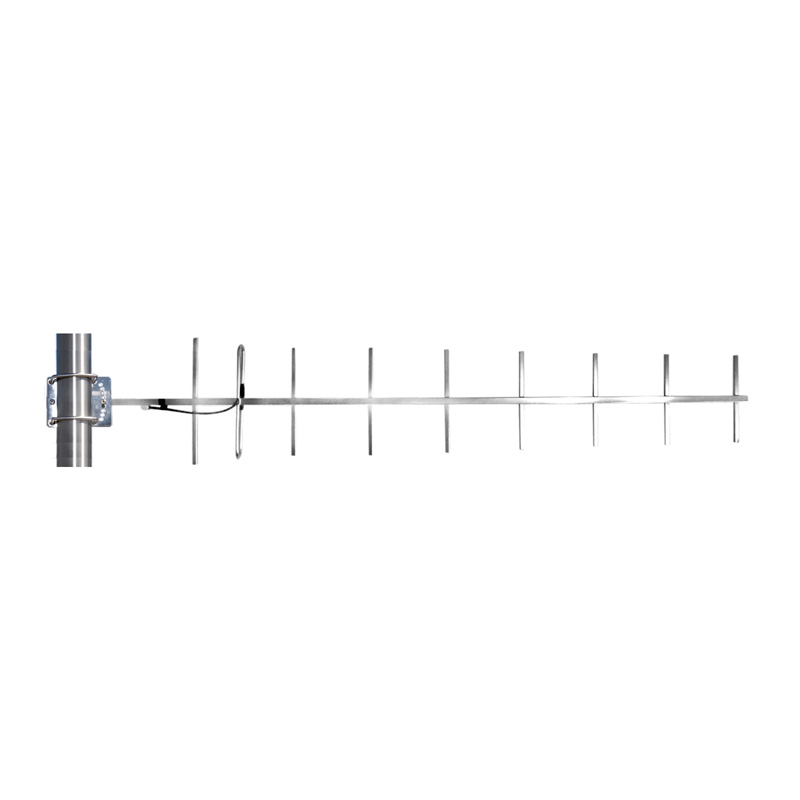

Benelec UHF 11dBd 9 Element Yagi Antenna with Stainless Steel Bracket 380-400MHz, N Socket
AUD Includes GST
The 02683Q Yagi antenna is a 11dBd Gain 9 element all Stainless-Steel directional Yagi antenna for use in the 380 – 400 MHz radio band. Its gain affords excellent radio link coverage. The robust construction ensures excellent longevity and performance. The Electropolished all Stainless-Steel construction is ideally suited for weather and corrosion resistance. All mechanical connections are welded for minimum inter-modulation levels. All electrical connections are directly soldered.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF 11dBd 9 Element Yagi Antenna with Stainless Steel Bracket
380-400MHz | N Socket
FEATURES
- All stainless-steel
- Full band coverage
- Low VSWR across band
- Angle adjustment
- All welded construction
- Can be mounted for vertical or horizontal polarisation
- Factory tuned; no further tuning required
APPLICATION
UHF Commercial Band Link applications.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 380 – 400 MHz |
| Gain | 11 dBd |
| VSWR | < 1.5:1 across band |
| Impedance | 50 Ω (nominal) |
| Polarisation | Vertical or horizontal |
| F/B Ratio | 18 dB |
| E Plane 3 dB Beamwidth | 36° |
| H Plane 3 dB Beamwidth | 45° |
| Power | 100 W |
| Termination | Cable tail – N socket |
| Wind Loading @160 KPH | 15.57 kg (152.7 N) |
| Base Materials | All stainless-steel |
| Length | 1895 mm |
| Width | 368 mm – widest |
| Net Weight | 3.5 kg |
