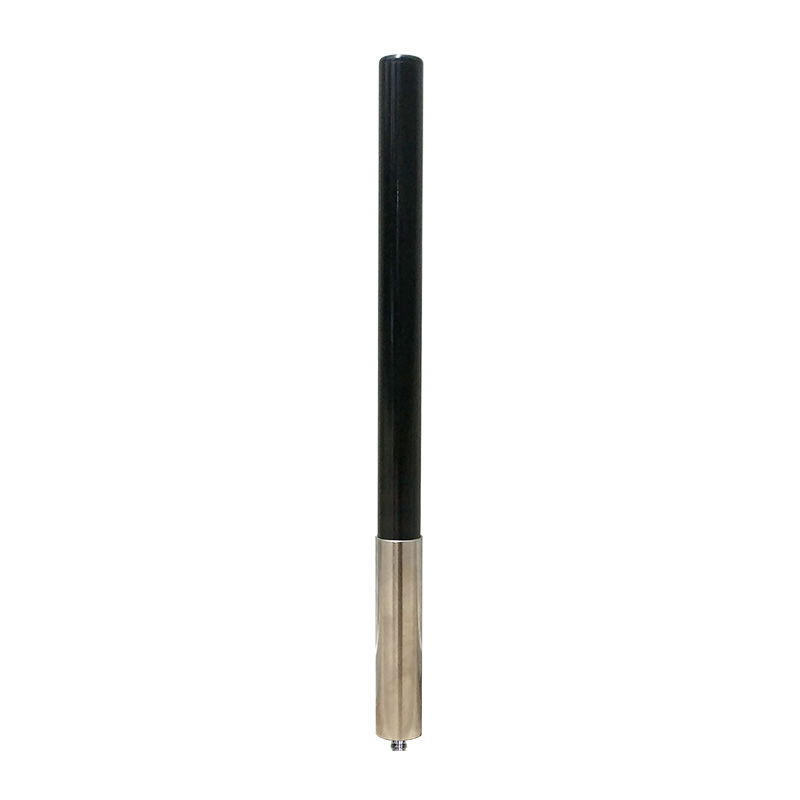

Benelec UHF 0dBd Unity Gain Base Enclosed Dipole Antenna 380-490MHz, N Socket
AUD Includes GST
The 02666B is a rugged broadband UHF dipole antenna engineered for marine and commercial applications. Covering the full 380–490 MHz band, it provides consistent unity gain performance with a low VSWR of <2.0:1. Housed in a heavy-duty black radome, the antenna is designed to endure harsh environments.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF 0dBd Unity Gain Base Enclosed Dipole Antenna
380-490MHz | N Socket
FEATURES
- Stainless-steel fittings
- Broad bandwidth
- Black HD radome
- Deck or pole mounting
- DC grounded
- Factory tuned; requires no further tuning
- Designed and manufactured in Australia
APPLICATION
UHF marine and commercial environments.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 380 – 490 MHz |
| Gain | Unity (~ 3 dBi) |
| VSWR | < 2.0:1 380 – 490 MHz |
| Impedance | 50 Ω |
| Polarisation | Vertical |
| E-Plane 3dB Beamwidth | 90° deg |
| H-Plane 3dB Beamwidth | 360° deg |
| Lightning Protection | DC grounded |
| Power | 80 W |
| Termination | Ns |
| Mounting Tube | 38 mm ø x 162 mm |
| Mounting | Clamp |
| Base Material | Stainless-steel |
| Length | 580 mm |
| Net Weight | 2 kg |
