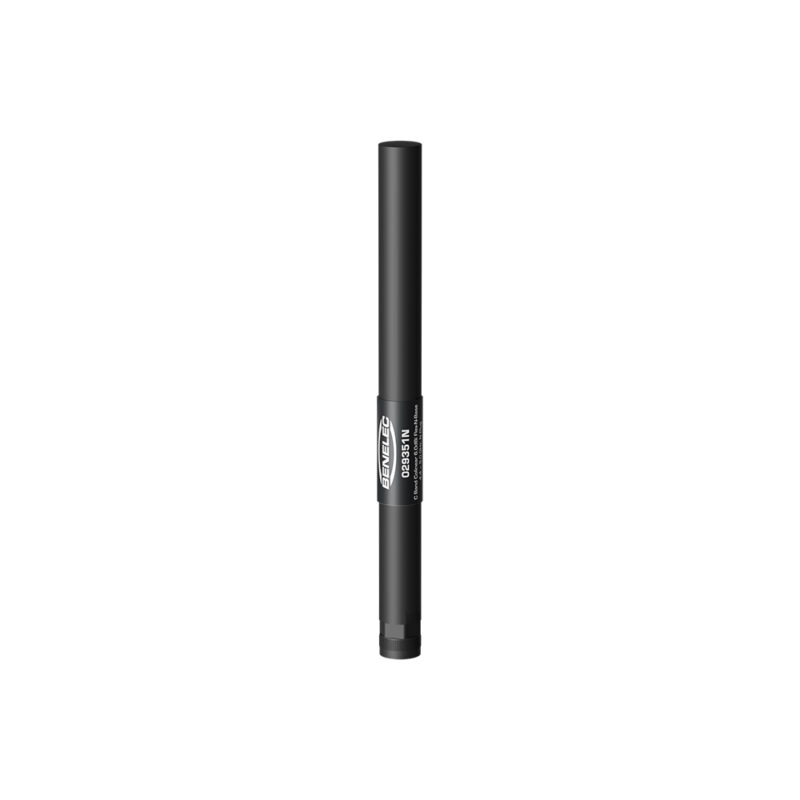

Benelec Tactical C Band Colinear 6.0dBi Spring Antenna 4.4-5.0GHz, N Plug
AUD Includes GST
The 029351N is a high-gain base station antenna designed for operation in the 4.4–5.0 GHz public safety band. Optimised for a wide range of wireless systems, it supports point-to-point, multi-point, and broadcast configurations. Typical applications include MANET, WLAN access points or bridges (802.11), and video surveillance transmitters. Its compact slimline design enables discreet mounting in both indoor and outdoor environments, while the radiation pattern ensures stable horizon coverage across the entire band.
No Datasheet Found. Please submit a request below.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec Tactical C Band Colinear 6.0dBi Antenna
4.4-5.0GHz | N Plug
FEATURES
- Matt black fiberglass radome
- Sidelobe level
- Fixed N type connector
- Slim and compact design
- Robust spring-loaded ferrule
- Robust and durable
- Factory tuned – no further tuning required
- Designed and manufactured in Australia
APPLICATION
Defence, Public safety MANET link applications.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 4.4-5.0 GHz |
| Gain | 6 dBi |
| VSWR | < 2.5:1 |
| Impedance | 50 Ω |
| Polarisation | Vertical |
| Radiation | Omni-directional +/- 1 dB |
| Beam Tilt | 0° to 3° |
| HPBW | 9° |
| SLL (side lobes) | <-10 dB |
| Element potential | D.C grounded |
| Power Rating | 20 W @ 25° C |
| Termination | N plug (spring loaded) |
| Wind Loading | 0.44 kg (@160KPH) |
| IP Rating | IP67 |
| Temp Rating | -40° to +85° C |
| Tip Deflection | <= 1.5° |
| Length | 274 mm |
| Maximum Width | 20 mm at connector |
| Net Weight | 145 g |
