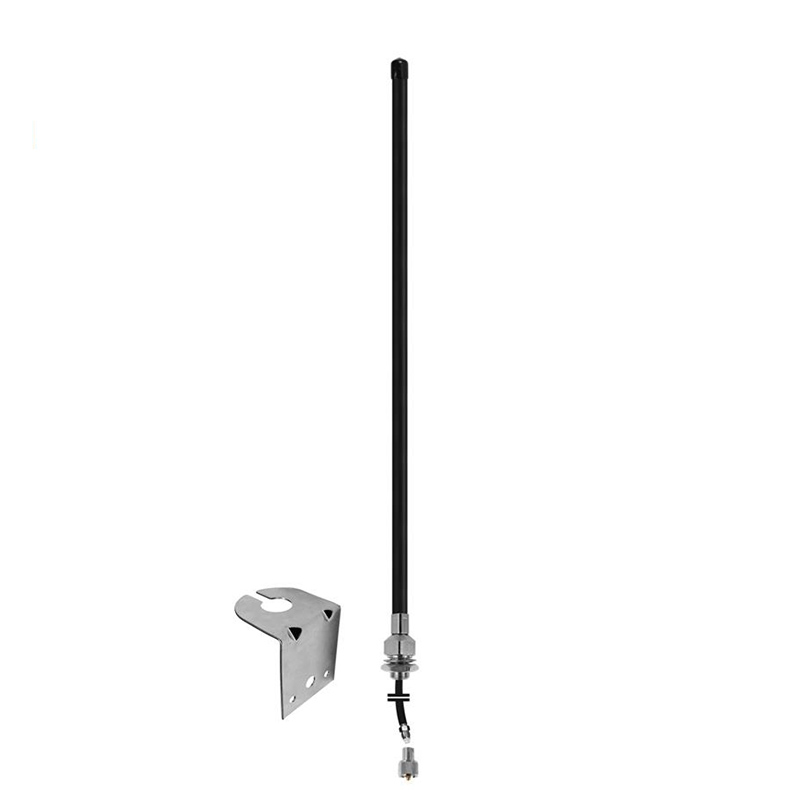

Benelec Flexi-Dipole UHF Mobile GPI Antenna Kit 477MHz, 5m Lead with Stainless Steel ‘L’ Bracket
The 02634XK is a UHF Mobile GPI Antenna Kit, 4 dB gain, tuned to UHF 477 MHz with added L Bracket. Its ground independence maintains a stable radiation pattern in all mounting applications. Its robust construction ensures excellent longevity and performance. Ideal for mounting in applications where ground plane area is non-existent or severely reduced.
[shipping_message]
- Description
- Additional information
- Specifications
Description
Benelec Flexi-Dipole UHF Mobile GPI Antenna Kit, 477MHz
Includes 5m Lead with Stainless Steel ‘L’ Bracket
The 02634XK is ideal for mounting in applications where ground plane area is non-existent or severely reduced. It is flexible, compact and can be mounted anywhere on the vehicle.
APPLICATIONS
UHF 477 MHz GPI Hand portable radios, non-ground plane applications.
FEATURES
- Ground Plane Independent
- Robust
- Flexible
- Compact
- Durable
- L Bracket included
TUNING
Factory tuned, no further tuning required
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
Additional information
| Weight | 400 g |
|---|---|
| Dimensions | 550 × 50 × 50 mm |
| Frequency | 477MHz UNDER 1.5:1 |
| Bandwidth | 15MHz under 1.5:1 |
| Gain | 4 dB* |
| Impedance | 50 Ω |
| Radiation Pattern | Omni Directional |
| Maximum Power | 30W |
| E Plane Beamwidth | 80 Deg |
| Length | 390 mm |
| Weight | 345 g |

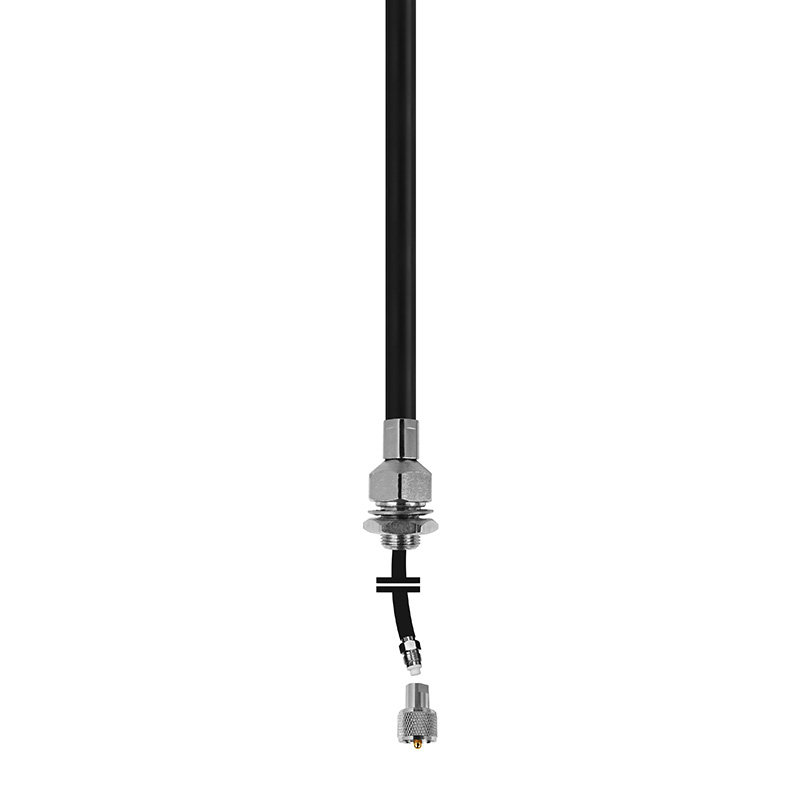

| Termination | Stud mount with 5m RG58C/U + FME Socket fitted** |
| Construction | Flexible Nylon Radome |
