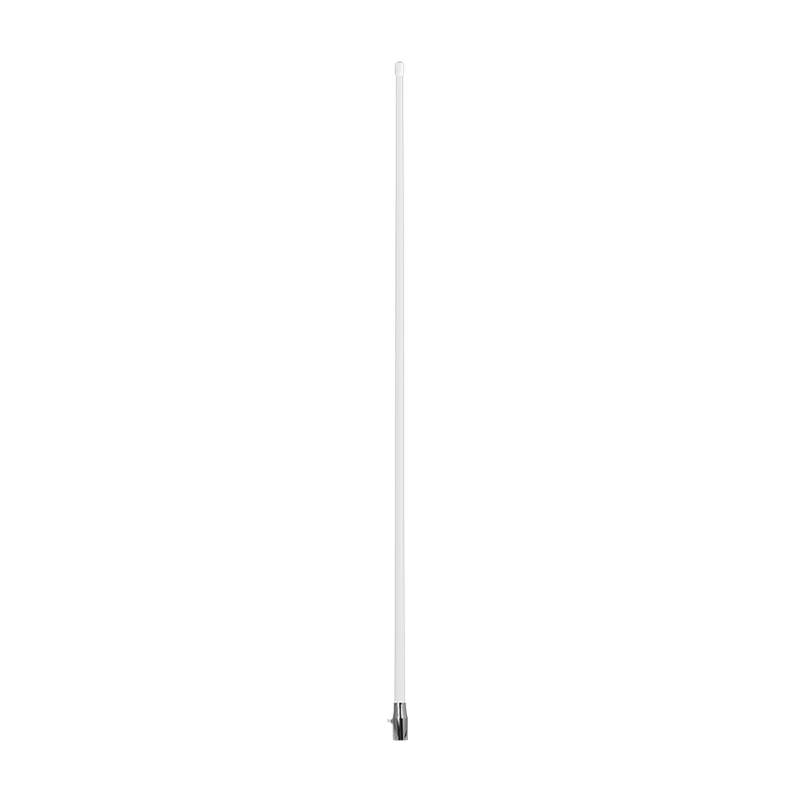

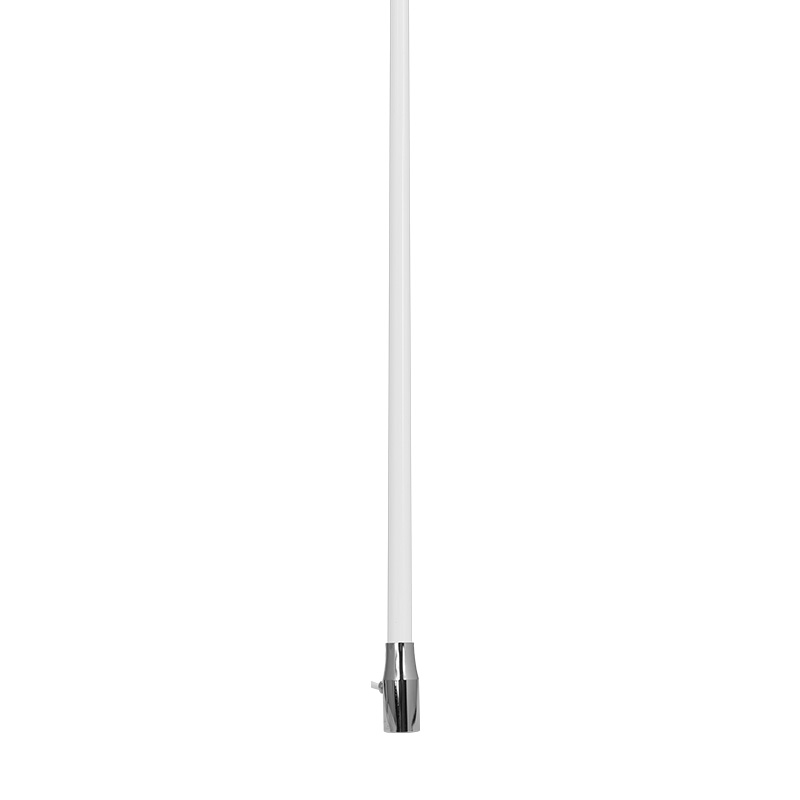

Benelec 1.8m (6′) Marine VHF Deck Mount Antenna
The 02523 is a VHF marine antenna for use in the VHF 156-162MHz marine band (including AIS1 and AIS2 Channels). The antenna is housed in a white, smooth, and rugged fiberglass radome, and comes complete with five meters of low loss white cable.
[shipping_message]
- Description
- Specifications
Description
VHF Marine Antenna | Deck Mount | 1.8m
The 02523 is housed in a white, smooth, and rugged fiberglass radome, and comes complete with five meters of low loss white cable. The antenna comes with a Male UHF Plug connector allowing connection to the Transceiver. The antenna can be used with a range of alternative optional mountings.
APPLICATIONS
Marine VHF
FEATURES
- Smooth white fiberglass radome
- 5 metres low loss cable (White)
- Chromed Brass fittings
- AIS suitable
- Matches adjustable bases (bases optional extra)
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
| Frequency | 156-162MHz |
| VSWR | <1.6:1 |
| Gain | Unity |
| Impedance | 50 Ohms nominal |
| Polarization | Vertical |
| Radiation | Omni Direction |
| Power rating | 25 Watts |
| Cable | 5m White RG58 |
| Termination | UHF Male Plug – to be fitted by customer |
| Base Materials | Fiberglass and Chromed Brass |
| Antenna Length | 1845mm |
