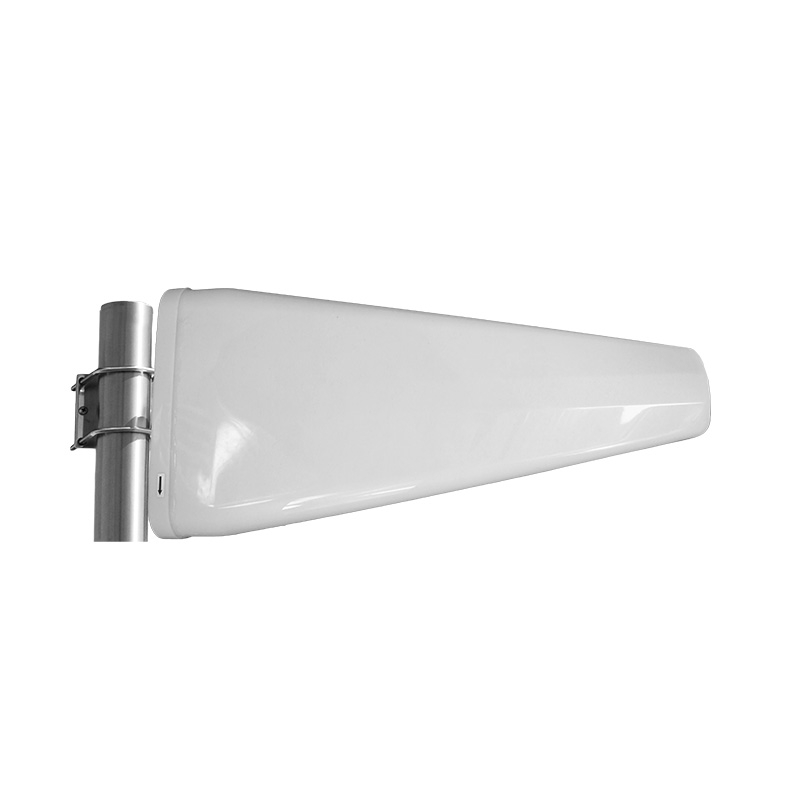

Benelec Cellular 5G 11dBi Directional Log Base Outdoor Shrouded Antenna with Mounting Bracket
Benelec Cellular 5G 11dBi Directional Log Base Antenna covers the full 5G band, 690-960MHz + 1710-2700MHz and 3.5-3.7GHz. AL Construction and Covered by a radome shroud to protect from the elements. N socket with Pole mounting bracket included.
[shipping_message]
- Description
- Specifications
Description
5G Directional Log Base Antenna with Mounting Bracket | 11dBi
The Benelec Cellular 5G 11dBi Directional Log Base Antenna provides reliable signal coverage for outdoor cellular and 5G networks. Its durable shrouded design ensures longevity and optimal performance in various environments.
APPLICATION
Ideal for 5G, LTE, and cellular network deployments requiring directional coverage in outdoor environments.
FEATURES
- Broad Frequency Range: Covers 698–960 MHz, 1710–2700 MHz, and 3300–4000 MHz bands
- Moderate to High Gain: 9.5 dBi (698–960 MHz), 10.5 dBi (1710–2700 MHz), and 11 dBi (3300–4000 MHz)
- Directional Coverage: Horizontal beam width from 85° to 60° and vertical beam width from 60° to 55°
- Low VSWR: ≤1.8 ensures minimal signal loss and improved performance
- Durable Outdoor Design: Shrouded aluminium construction with a pole-mounting bracket
- Weather-Resistant: Operates in temperatures from -40°C to +65°C and withstands wind speeds up to 60 m/s
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
| Frequency Range | 698 – 960 MHz | 1710 – 2700 MHz | 3300 – 4000 MHz |
| VSWR | ≤ 1.8 | ||
| Gain | 9.5 dBi | 10.5 dBi | 11 dBi |
| Horizontal Beam Width | 85 ° | 65 ° | 60 ° |
| Vertical Beam Width | 60 ° | 55 ° | 55 ° |
| Front-to-Back Ratio | ≥ 15 dB | ||
| Polarization | Vertical | ||
| Intermodulation IM3  (2 x 33 dBm) | ≤ -150 dBc | ||
| Input Impedance | 50 Ω | ||
| Maximum Input Power | 50 W | ||
| Lightning Protection | DC Ground | ||
| Inner Connector Type | N Female | ||
| Installation | Pole-holding | ||
| Dimensions | 405 x 210 x 65 mm | ||
| Antenna Weight | 1.2 kg | ||
| Radiating Element Material | AI | ||
| Operating Temperature | -40 °C to +65 °C | ||
| Windy Velocity | 60 m/s | ||
