Benelec Cellular 5G 3dBi Marine Mast Mount Antenna

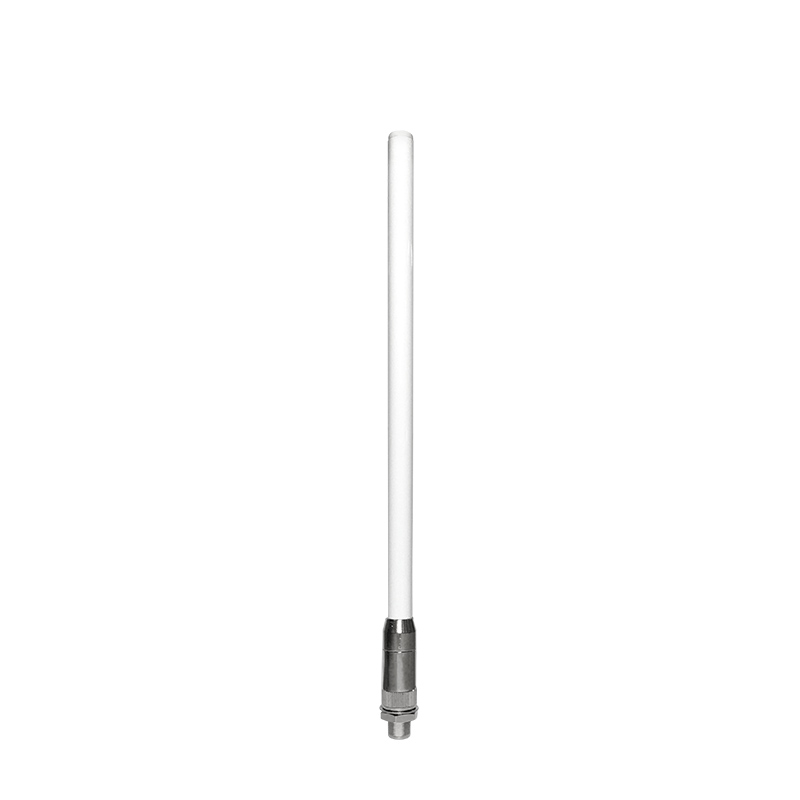

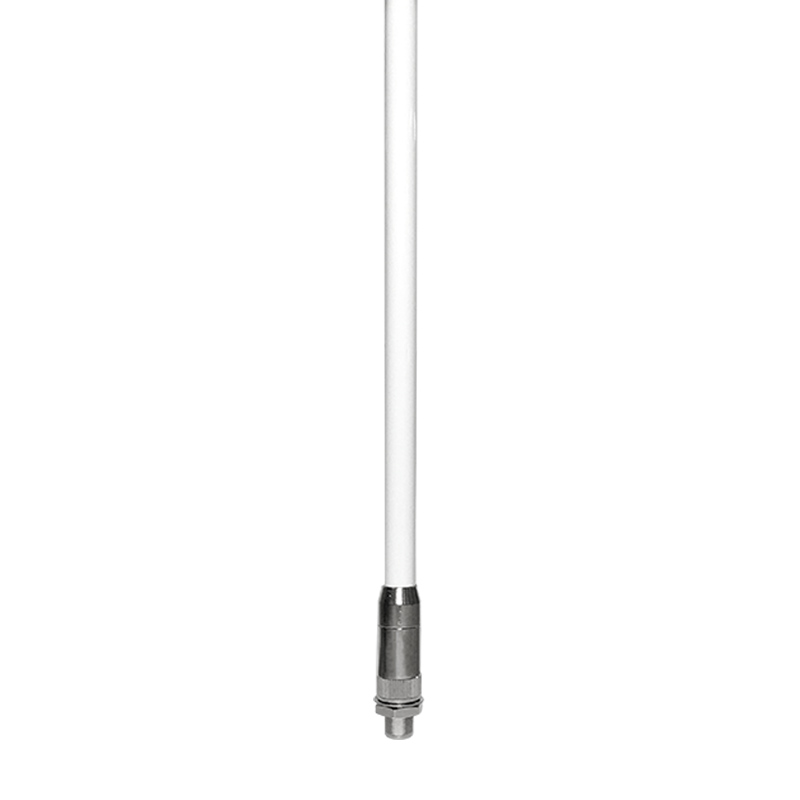

The 02461C is a unity gain 5G marine antenna for use in the 690–960 MHz, 1710–2700 MHz and 3500–3700 MHz bands. It is fitted with a N type female connector allowing the attachment of long low loss cable runs utilized in mast mount applications. The antenna can also be used with other Benelec brackets to allow for railing mounting, and cabin mounting applications.
[shipping_message]
- Description
- Specifications
Description
Cellular 5G Marine Antenna | Mast Mount, 3dBi
The 02461C is a unity gain 5G antenna for marine use in the 690–960 MHz, 1710–2700 MHz and 3500–3700 MHz bands. It is fitted with a N type female connector allowing the attachment of long low loss cable runs utilized in mast mount applications. The antenna can also be used with other Benelec brackets to allow for railing mounting, and cabin mounting applications.
APPLICATIONS
Marine Cellular 5G
FEATURES
- White Fibreglass radome
- Chromed brass fittings
- Small profile
- Low height
- High quality N female connector
- Dual band operation
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
| Gain | Unity |
| VSWR | < 2:1 – with cable attached |
| Impedance | 50 Ohms nominal |
| Polarisation | Vertical |
| Radiation | Omnidirectional |
| Power Rating | 25 Watts |
| Termination | N Female Connector |
| Base Materials | F/G and Chromed Brass |
| Antenna Length | 365 mm (14”) |
| Antenna Weight | 180 gm (0.4 lb) |
