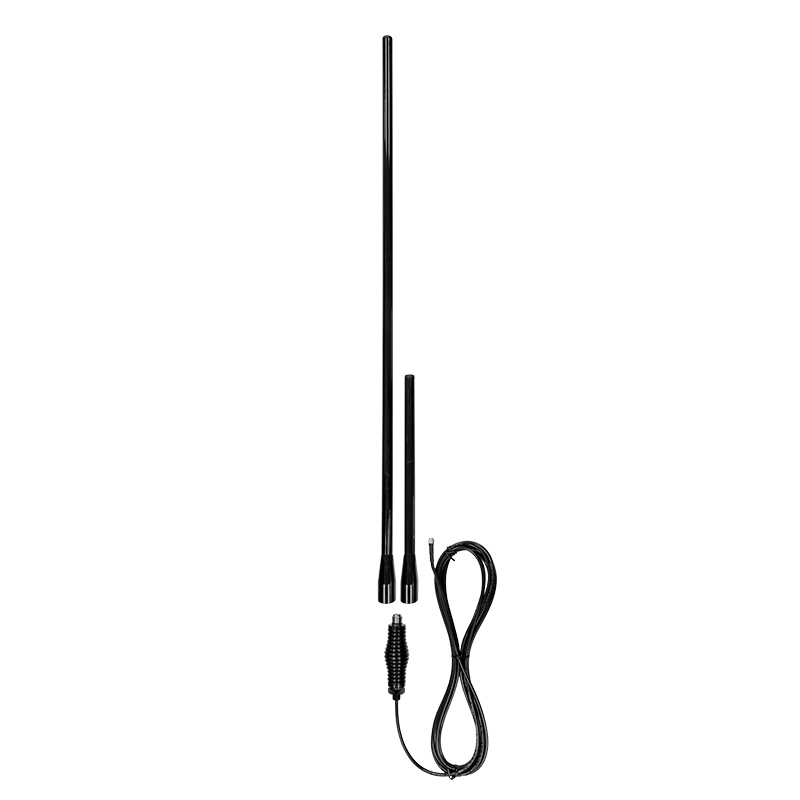

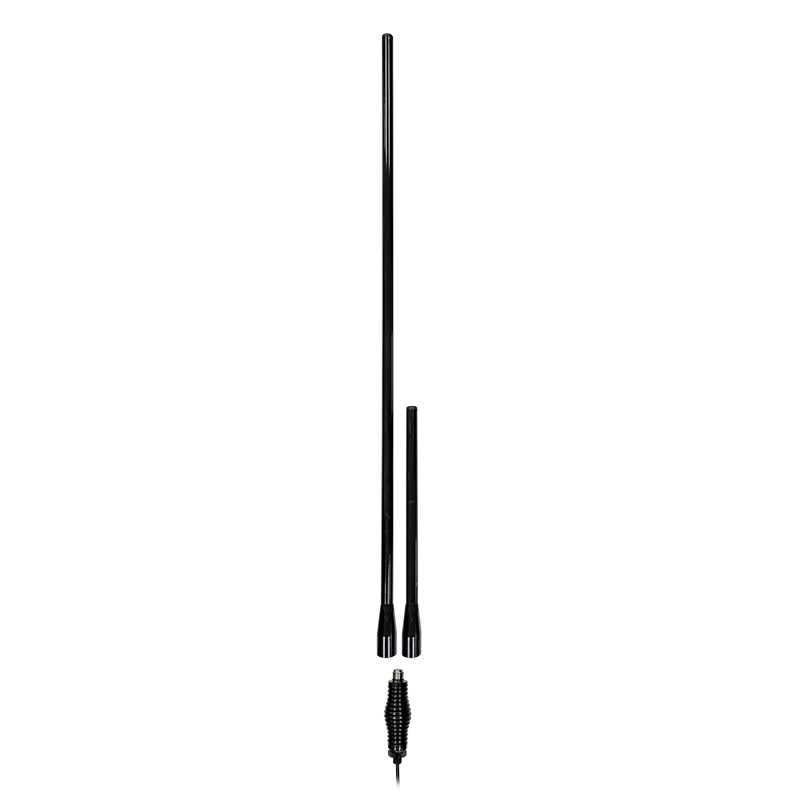

Benelec Cellular 5G 3 & 7.5dBi Twin Mobile Collinear Removable Spring Mounted Antenna Kit
The 024579RK antenna is multi-band Cellular 5G dual antenna kit intended for use in frequency bands 690 – 960 MHz, 1710 – 2700 MHz and 3500 – 3700 MHz. The 024579RK kit antennas offer a genuine, respective, 3.0dBi and 7.5dBi of gain on the horizon at the designated frequency of operation. The construction of each antenna features an enclosed thick-walled fiberglass radome, with the antenna detachable from the mounting spring.
- Description
- Specifications
Description
Benelec Cellular 5G 3 & 7.5dBi Twin Mobile Collinear Removable Spring Mounted Antenna Kit
APPLICATIONS
- Mobile and cellular communications
- Cellular Repeaters
- Multi-band base station
FEATURES
- Multi-Band performance
- Easy to install
- Fiberglass and thick-walled radome
- Light weight

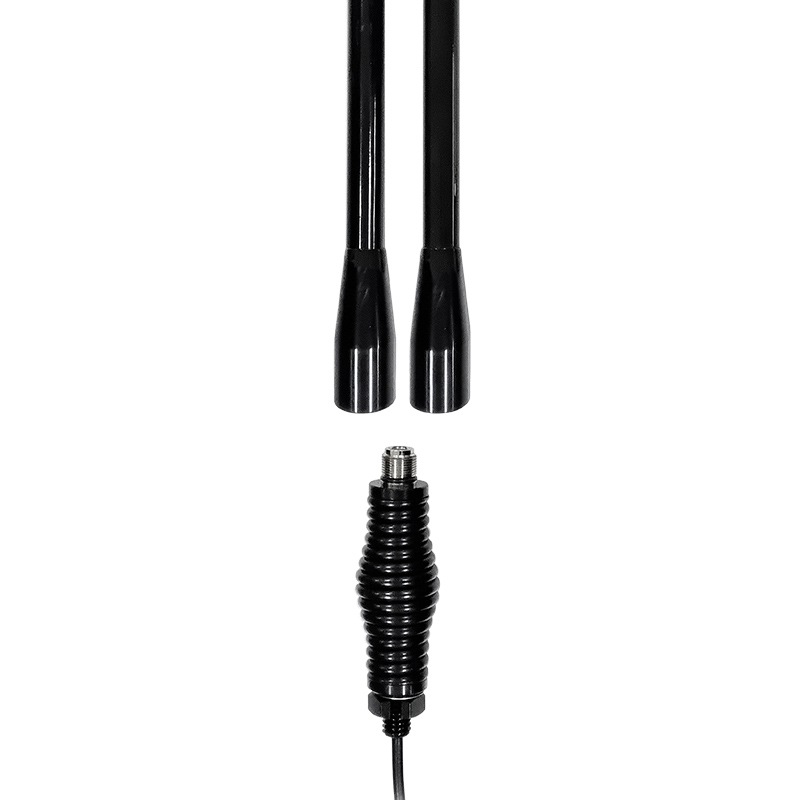

- Plated heavy duty barrel stainless steel spring
- Designed and manufactured in Australia
TUNING
Factory tuned; requires no further tuning
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
| Frequency | 690 – 960 MHz Tuned Bandwidth 270 MHz
1710 – 2700 MHz Tuned Bandwidth 990 MHz 3500 – 3700 MHz Tuned Bandwidth 200 MHz |
| Gain | 3dBi & 7.5 dBi (690 – 960 MHz)
3 dBi (1710 – 2700 MHz) 3 dBi (3500 – 3700 MHz) |
| Impedance | 50 Ω |
| Operating VSWR | < 2:1 |
| Radiation Pattern | Omni Directional |
| E Plane Beamwidth | 3dBi = 60 Deg, 7.5dBi = 14 Deg |
| Length | 3dBi antenna = 420mm, 7.5dBi antenna = 1220 mm (includes spring assembly) |
| Width | Fiberglass: 16mm (0.6”)
Spring: 35mm (1.4”) |
| Weight | 3dBi antenna = 0.76 kg (1.7 lbs),
7.5dBi antenna = 0.84 kg (1.8 lbs) |

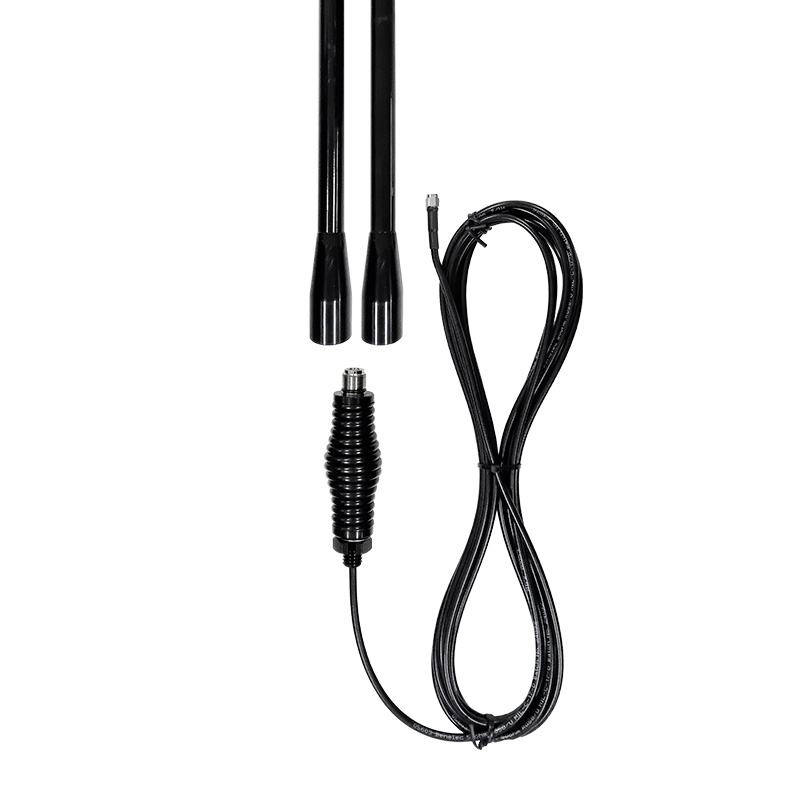

| Termination | SMA Plug, 5m (16.4’) Low Loss RG58 Cable Tail (05603) |
| Construction | Fibreglass Radome, Black Coated Stainless-Steel Spring and Brass Ferrule |
