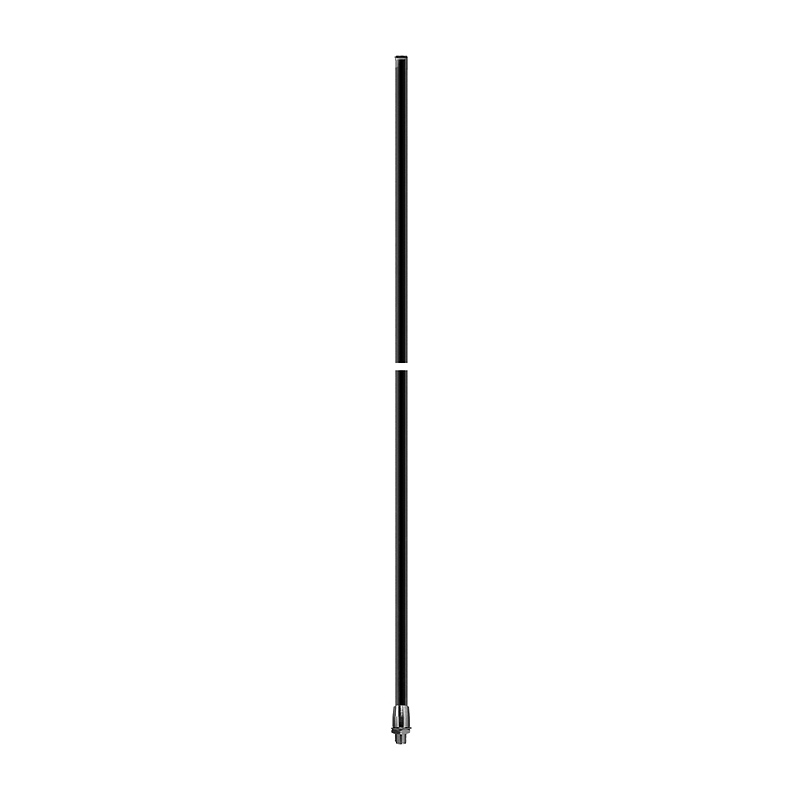

Benelec Cellular 5G 7.5dBi Marine Base Antenna, Black
The 024579B is multi-band 5G marine antenna intended for use in frequency bands 690 – 960 MHz, 1710 – 2700 MHz and 3500 – 3700 MHz. The 024579B antenna does away with the need for three separate antennas whilst maintaining high gain across the band 690-960 MHz. It comes with an N socket termination. The antenna is light weight, fitted to a stainless-steel stud, in a black radome.
[shipping_message]
- Description
- Specifications
Description
Cellular 5G Marine Antenna 7.5dBi, Black
APPLICATIONS
- Mobile and cellular communications
- Cellular Repeaters
- Multi-band base station
FEATURES
- Multi-Band performance
- Easy to install
- Fiberglass and thick-walled radome
- Light weight
- Plated heavy duty barrel stainless steel spring
- Designed and manufactured in Australia
WARRANTY
3 years (Please refer to Benelec Terms & Conditions)
| Frequency | 690 – 960 MHz Tuned Bandwidth 270 MHz
1710 – 2700 MHz Tuned Bandwidth 990 MHz 3500 – 3700 MHz Tuned Bandwidth 200 MHz |
| Gain | 7.5 dBi (690 – 960 MHz)
3 dBi (1710 – 2700 MHz) 3 dBi (3500 – 3700 MHz) |
| Impedance | 50 Ω |
| Operating VSWR | < 2:1 |
| Radiation Pattern | Omni Directional |
| E Plane 3dB Beamwidth | 14 Deg @ 690-960MHz |
| Length | 1040mm |
| Width | Fiberglass: 16mm (0.6”) |
| Weight | 0.80 kg (1.8 lbs) |
| Termination | N Socket |
| Construction | Fibreglass Radome, Black |
