Benelec UHF 3-6dBd Base 2 Bay Offset Array Antenna 360-520MHz, N Plug
AUD Includes GST

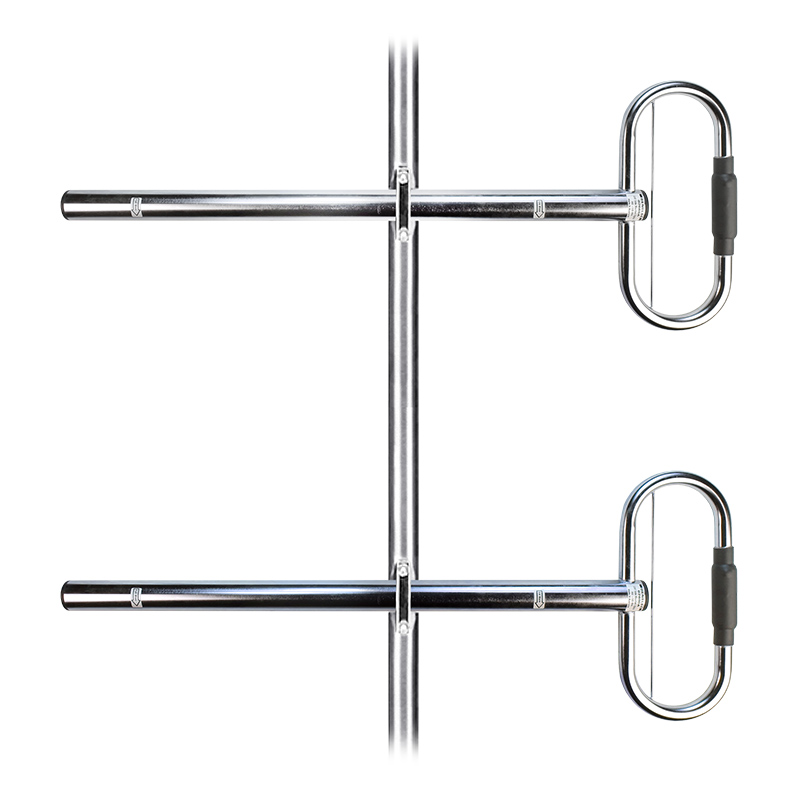

The 02680A2 is a rugged 2-bay offset dipole array designed for broadband operation in the 360–520 MHz band. Each dipole is constructed from fully welded and polished stainless steel, making the array ideal for harsh environments. It can be mounted in three configurations ¼, ½, and full wavelength spacing from the vertical mounting pole to achieve different radiation patterns in the H-plane.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF 3-6dBd Base 2 Bay Offset Array Antenna
360-520MHz | N Plug
FEATURES
- All stainless-steel construction
- Broad H plane pattern
- Rugged construction
- Broad VSWR bandwidth
- 2 x Right-angle stainless-steel bracket included
- External phasing harness supplied
- Factory tuned; requires no further tuning
- Designed and manufactured in Australia
INSTALLATION DIMENSIONS
¼ Wave 163 mm
½ Wave 326mm
Full Wave 652mm
APPLICATION
Base station applications.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 360 – 520 MHz |
| Gain | 3 – 6 dBd |
| VSWR | < 1.5:1 |
| Impedance | 50 Ω nominal |
| Polarisation | Vertical |
| E-Plane Beamwidth | 32° (at ¼ λ) |
| H-Plane Beamwidth | Directional – see radiation patterns |
| Power | 500 W |
| Termination | N Plug |
| Mounting Tube | RG-214 cable tails |
| Wind Loading | 88.4 kg (194.9 lbs) (866.8 N) with 0.5” ice @ 150 mph;
120.3 kgs (265.2 lbs) (117.8 N) with 0.5” ice @ 175 mph |
| Base Material | Stainless-steel |
| Length | 820 mm |
| Net Weight | 5.0 kg |
