CEL-FI ROAM R41 Vehicle Bundle Pack 6dBi

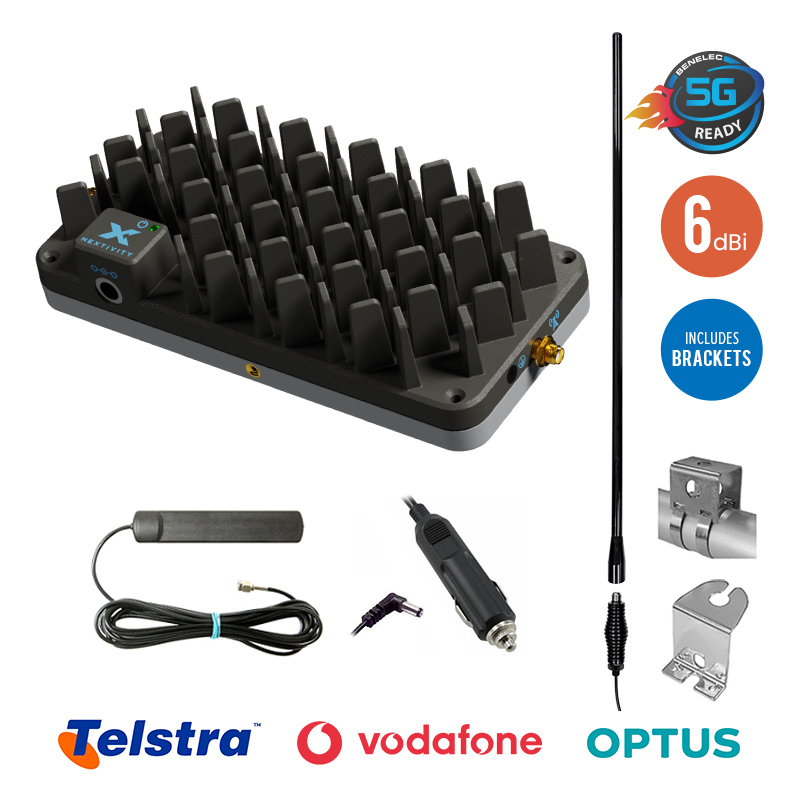

Includes: Cel-Fi R41 + Server Antenna + Vehicle Power Adaptor + Benelec 5G 6dBi Gain Removable Mobile Antenna + Mounting Brackets.
The CEL-FI ROAM R41 mobile cellular coverage solution delivers reliable 4G and 5G connectivity inside cars and boats, including fleet vehicles.
Carrier : Telstra / Optus / Vodafone
- Description
- Specifications
Description
6 dBi Vehicle Booster Pack
PACK INCLUDES:
- CEL-FI ROAM R41
- 6 dBi External 5G Antenna
- Internal Antenna
- Vehicle Power Adaptor
- Mounting Brackets
CEL-FI ROAM R41
The CEL-FI ROAM R41 mobile cellular coverage solution delivers reliable 3G, 4G, and 5G connectivity inside cars and boats, including fleet vehicles. With the latest Nextivity proprietary IntelliBoost chip, ROAM R41 offers enterprise-grade performance to solve poor coverage and enable dependable calling, texting, and streaming on the move. The system features plug-and-play operation for quick and easy set up, improving connectivity in any car, truck, RV, or boat within minutes. ROAM R41 also supports carrier switching through the Nextivity WAVE App for iOS and Android devices.
FEATURES
- Suitable for Telstra / Optus / Vodafone
- Deploy the unit anywhere in the network, with full frequency coverage
- Latest 4th generation Nextivity proprietary IntelliBoost chip delivers channelized coverage for specific mobile network operator signals
- Support for 3G, 4G, and 5G dynamic spectrum sharing (DSS)
- Easy to install with plug-and-play operation
6 dBi External 5G Antenna
The 024575R antenna is a multi-band mobile 5G ready removable cellular antenna intended for use in the frequency bands 690 – 960 MHz, 1710 – 2700 MHz and 3500 – 3700 MHz. The antenna is light weight, enclosed in a thick-walled fiberglass radome and comes with a removable cable spring assembly.
APPLICATIONS
- Mobile and cellular communications
- Cellular Repeaters
- Multi-band base station
FEATURES
- Multi-Band performance
- Easy to install
- Fiberglass and thick-walled radome
- Light weight
- Plated heavy duty barrel stainless steel spring
- Designed and manufactured in Australia
Bull Bar Bracket
APPLICATIONS
- Bull Bar / Nudge Bar 40 – 60 mm Diameter
- Can accommodate any 16 mm stud mount antenna, standard bases & all M base fittings
- Can be mounted horizontally or vertically on bar
- For bigger bars, replace hose clamps
Guard Mount Bracket
APPLICATIONS
• Vehicle Boot / Bonnet Mounting
• Fixed Installation of GPI Antennas
• Can accommodate standard bases
CEL-FI ROAM R41
| Frequency Bands | 1/3/5/7/8/20/26/28L |
| Relay Channel Bandwidths (MHz) | 5/10/15/20 |
| Networks | 3G/4G/5G |
| Network Protocols | WCDMA/LTE/DSS |
| Network Selection | Automatically (MyWave App set to “Following”) |
| Configured to authorized operator | PLMN-IDs |
| Duplex Modes | FDD |
| # of Relay Bands (MHz max.) | 1 |
| Relay Bandwidth (MHz max.) | 20 |
| Output Downlink Power (All Bands) (dBm max.) | 0 |
| Output Uplink Power (Bands 5/8/20/26/28L) (dBm max.) | 22 |
| Output Uplink Power (Bands 1/3/7) (dBm max.) | 24 |
| System Gain (dBm max.) | 100 |
| Enterprise-Grade Echo Cancellation (dB min.) | 30 |
| Return Loss (dB typ.) | -8 |
6 dBi External 5G Antenna
| Frequency | 690 – 960 MHz Tuned Bandwidth 270 MHz
1710 – 2700 MHz Tuned Bandwidth 990 MHz 3500 – 3700 MHz Tuned Bandwidth 200 MHz |
| Gain | 6 dBi (690 – 960 MHz)
3 dBi (1710 – 2700 MHz) 3 dBi (3500 – 3700 MHz) |
| Impedance | 50 Ohm |
| VSWR | < 2:1 |
| Radiation Pattern | Omni-directional |
| E Plane 3dB Beamwidth | 20 deg |
| Length | 905 mm (includes spring assembly) |
| Width | Fiberglass: 16 mm (0.6”)
Spring: 35 mm (1.4”) |
| Weight | 0.81 kg (1.79 lbs) |
| Termination | SMA Plug, 5 m (16’) RG58 Cable Tail (05603) |
| Construction | Fiberglass Radome, Black Coated Stainless-Steel Spring |
Heavy Duty Bull Bar Antenna Bracket
| Antenna Mounting | 16 mm |
| Materials | Electropolished Stainless Steel |
| Hose Clamps | Stainless Steel 40 – 60 mm |
| Dimensions | 55 x 40 x 45 mm (LxWxH) |
Guard Mount Bracket
| Mounting Holes | 4 x 4.6 φ, 38 mm, 1 x 11 x 15 mm slot vertical and 1 x 11 x 12 mm slot horizontal |
| Antenna Mounting | 16 mm φ |
| Materials | Nom 2 mm Polished Stainless Steel |
| Back Plate | 52 mm (W) x 57 mm (H) |
| Antenna Centre to Back | 26.5 mm |
| Cable Entry | 5.5 mm slot |
