Benelec VHF Mid Band Mobile Tapered Whip 1.5m 48 – 85 MHz, 5/16″ 26 TPI female thread
AUD Includes GST

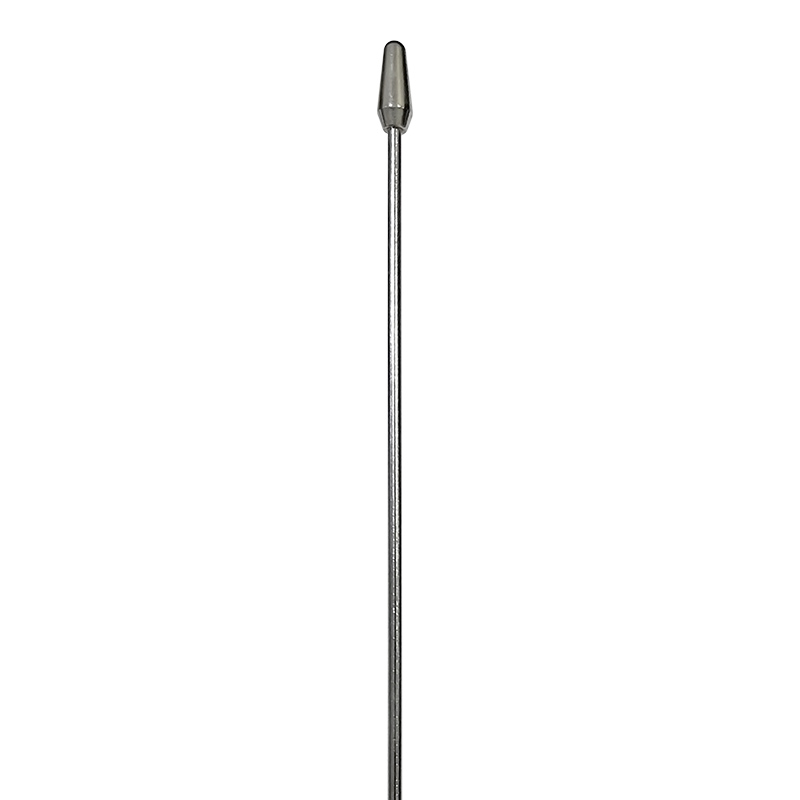

The 02403 is a unity gain, quarter-wave ground plane mobile antenna with a tapered 17-7PH stainless steel whip, tunable across the VHF band from 48 to 85 MHz. Its rugged construction ensures long-lasting durability and reliable performance. Designed for use with the 02720 mobile base, the antenna is tuned at the base, with the radiator secured to the ferrule using stainless-steel grub screws.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec VHF Mid Band Mobile Tapered Whip
1.5m | 48 – 85 MHz
FEATURES
- Tapered, rigid, 17-7PH stainless-steel radiator
- Nickel plated brass base ferrule with stainless-steel grub screws
- Durable
- Rugged construction
APPLICATION
Mobile coverage for mid band VHF commercial radio bands.
MOUNTING
Any mobile mounting bracket that will accommodate a Standard base. Please refer to our website for all available mobile mounting bracket.
Must be used with 02410 ferrule (supplied separately)
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 48 – 85 MHz |
| Gain | Unity (0dBd) |
| VSWR | <2.0:1 Tuned Bandwidth 12% <1.5:1 Tuned Bandwidth 6% |
| Impedance | 50 Ω nominal |
| Vertical Beamwidth | 60° |
| Termination | 5/16″ 26 TPI female thread |
| Antenna Length | 1510 mm |
| Net Weight | 350 g |
