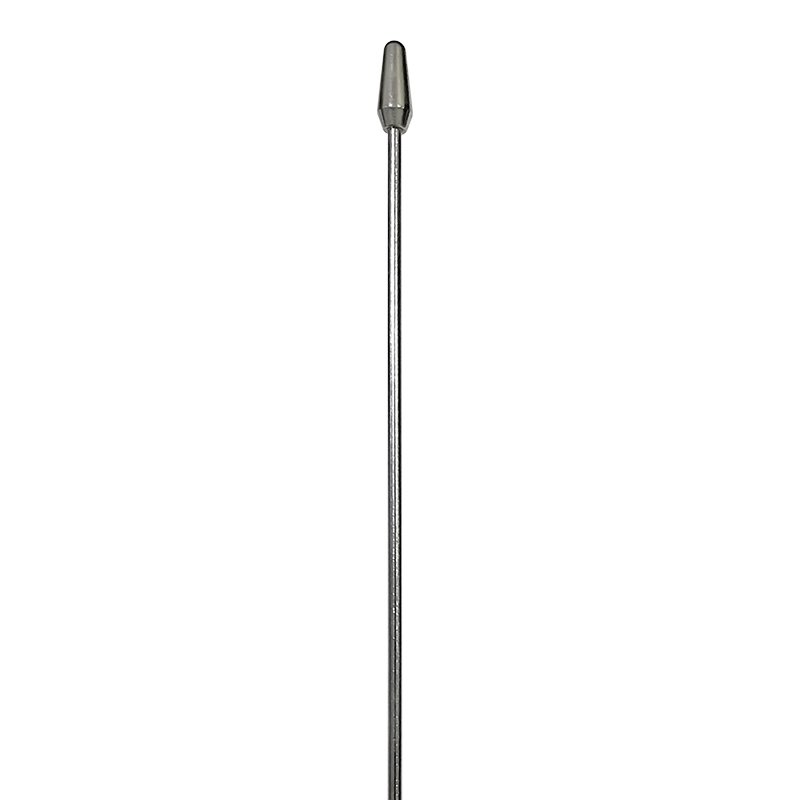

Benelec VHF Mid Band Mobile Tapered Whip 1.2m 61 – 85 MHz, 5/16″ 26 TPI female thread
AUD Includes GST
The 02401 is a unity gain, quarter-wave mobile antenna featuring a tapered 17-7PH stainless steel whip, tuneable across the VHF Mid Band from 61 to 85 MHz. Its rugged construction delivers long service life and consistent performance. Designed for use with the 02720 and 02740 mobile bases, the antenna is tuned at the base, with the radiator secured to the ferrule using stainless-steel grub screws.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec VHF Mid Band Mobile Tapered Whip
1.2m | 61 – 85 MHz
FEATURES
- Tapered, rigid, 17-7PH stainless-steel radiator
- Nickel plated brass base ferrule with stainless-steel grub screws
- Durable
- Rugged construction
MOUNTING
Any mobile mounting bracket that will accommodate a standard base. Please refer to our website for all available mobile mounting bracket.
Must be used with 02410 ferrule (supplied separately)
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 61 – 85 MHz |
| Gain | Unity (0dBd) |
| VSWR | <2.0:1 Tuned Bandwidth 12% <1.5:1 Tuned Bandwidth 6% |
| Impedance | 50 Ω nominal |
| Vertical Beamwidth | 60° |
| Termination | 5/16″ 26 TPI female thread |
| Antenna Length | 1.2 m |
| Net Weight | 300 g |
