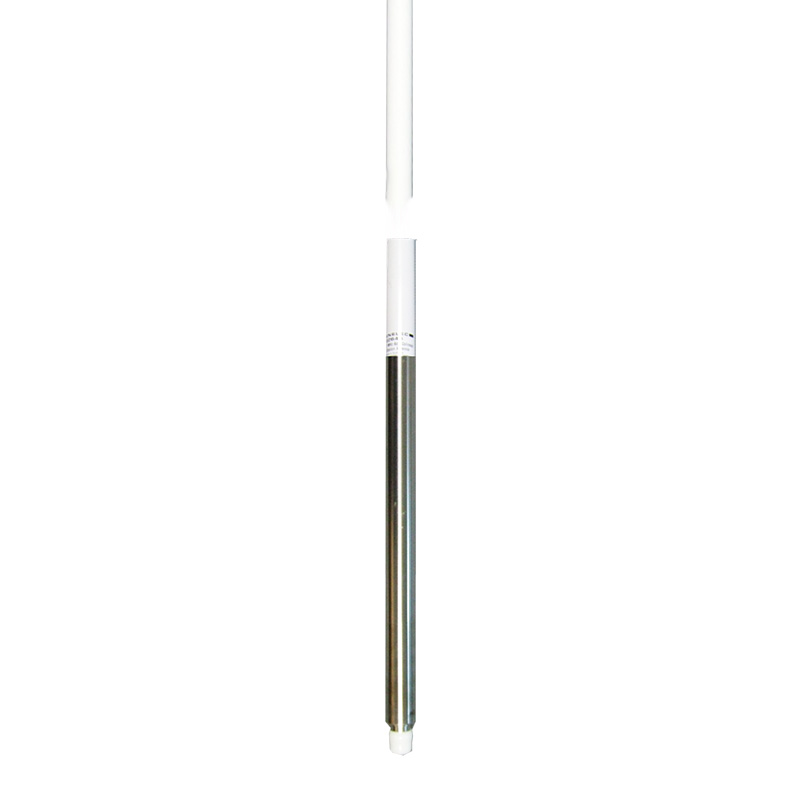

Benelec VHF 3dBd High Band Base Colinear Duplex Antenna 146-174MHz, N Plug
AUD Includes GST
The 02548 antenna is a 3 dBd gain, duplex base station antenna covering the 146-174 MHz Radio Band. The 02548 antenna allows sufficient bandwidth to cover the 6.0 MHz Tx/RX duplex spread within this band. It offers a stable radiation pattern with negligible horizontal pattern tilt. Robust construction ensures excellent longevity and performance.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec VHF 3dBd High Band Base Colinear Duplex Antenna
146-174MHz | N Plug
FEATURES
- White, smooth, glossy, fiberglass radome
- Stainless-steel mounting tube
- DC grounding
- Factory tuned at specified segment of band;
No further tuning required - Designed and manufactured in Australia
APPLICATION
- Duplex – base station applications
- Base coverage for the 146 -174 MHz Hi-VHF radio
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 146 -174 MHz |
| Gain | 3 dBd (gain over a half wave dipole antenna) |
| VSWR | <1.5:1 @ 3.75% bandwidth |
| Impedance | 50 Ω |
| Polarisation | Vertical – 34 def beamwidth |
| Radiation | Omni-directional |
| Power | 50 W |
| Termination | N plug connector |
| Length | 3.0 m (@ 148 MHz) |
| Diameter | 50.8 mm |
| Net Weight | 3.2 kg |
