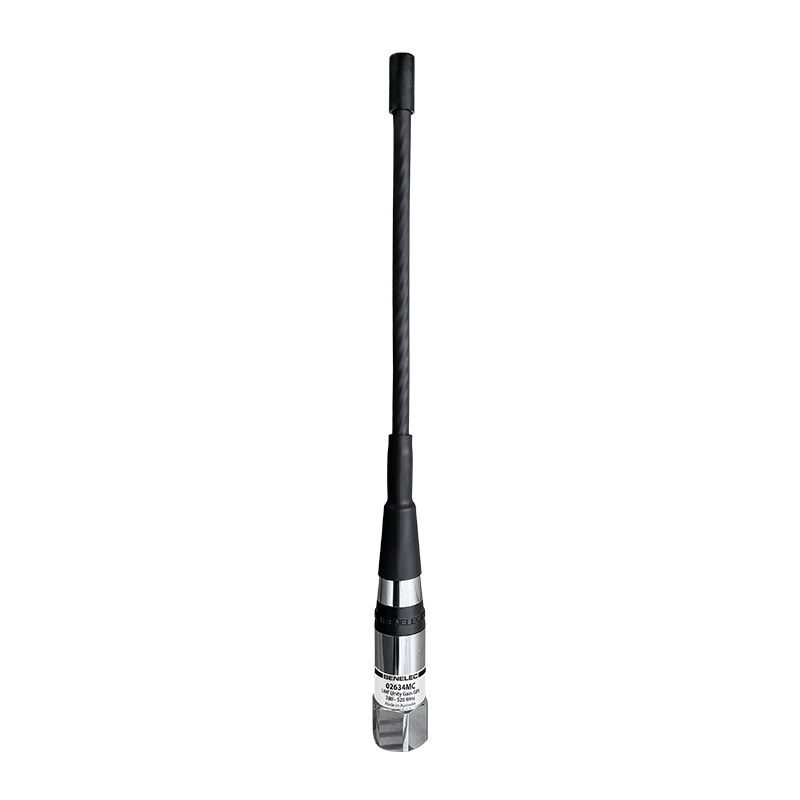

Benelec UHF Ultra Rugged Mobile GPI Antenna 380-520MHz, UHF Plug
AUD Includes GST
The 02634MC is a rugged, ground-independent antenna engineered for reliable performance in harsh environments. It features a solid matching section base and a flexible stainless-steel wire radiator, offering durability and wide bandwidth coverage across multiple frequency bands. Designed to perform effectively on both metal and non-metal surfaces, it is ideal for mining and other demanding industrial applications where conventional antennas may fail.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF Ultra Rugged Mobile GPI Antenna
380-520MHz | UHF Plug
FEATURES
- Rugged matching section
- Removable from mounting base
- Rugged stainless-steel radiator
- Wide bandwidth
- Factory tuned; requires no further tuning
- Designed and manufactured in Australia
APPLICATION
Extreme environments – i.e. Mining industry.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 380 – 520 MHz |
| Gain | Unity (+2dBi) |
| VSWR | < 2:1 (380-520MHz) |
| Impedance | 50 Ω nominal |
| Radiation | Omni directional |
| E Plane Beamwidth | 80° deg |
| Power Rating | 100 W |
| Termination | UHF plug to M base |
| Base Materials | Chromed brass and stainless- steel |
| Length | 320 mm |
| Net Weight | 260 g |
