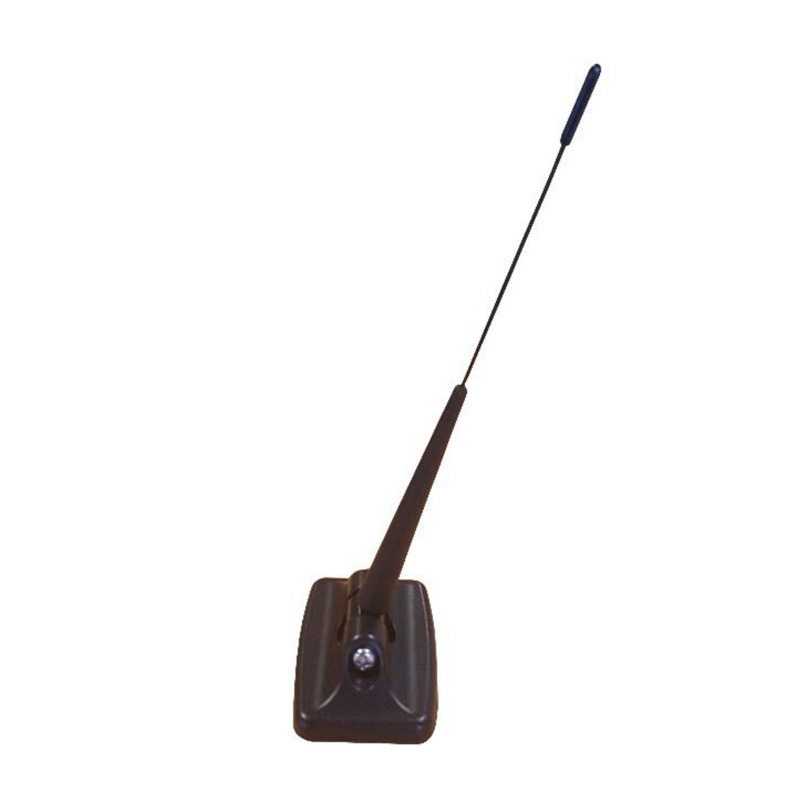

Benelec UHF Mobile Broadband Glass Mounted GPI Antenna 406-535MHz
AUD Includes GST
This “on-glass” antenna technology enables RF transmission and reception through glass surfaces. It features a no-hole mounting system that ensures a complete moisture seal and provides long-lasting, secure attachment.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF Mobile Glass Mounted GPI Antenna
406 – 535 MHz
FEATURES
- Unique design – transmits and receives through glass
- Built-in tuner enables wideband frequency coverage
- Efficient no-hole mounting installs in minutes with strong, long-lasting hold
- Weatherproof – prevents water ingress from gasket failure or cable entry
- Effective – high mounting position provides optimal omni-directional coverage
- Convenient – adjustable whip for easy vertical alignment
- Discreet cellular-style models available for covert public safety use
- Factory tuned; requires no further tuning
APPLICATION
Vehicular Communication.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 406-535 MHz |
| Gain | Unity |
| VSWR | <1.5:1 |
| Impedance | 50 Ω nominal |
| Radiation Pattern | Omni directional |
| Radiation | Vertical |
| Power | 50 W |
| Cable | RG58 cable tail (4m) |
| Termination | Unterminated (includes loose Mini-UHF plug) |
| Coupling Unit | DC grounded, shunt-fed |
| Radiator Materials | Stainless steel stainless with stainless steel whip steel, black finish encapsulated |
| Mounting Footprint | 1.75” sq |
| Mounting Method | Mount with black finish and stainless-steel hardware and plastic ABS cover |
| Length | 150 mm |
| Net Weight | 230 g |
