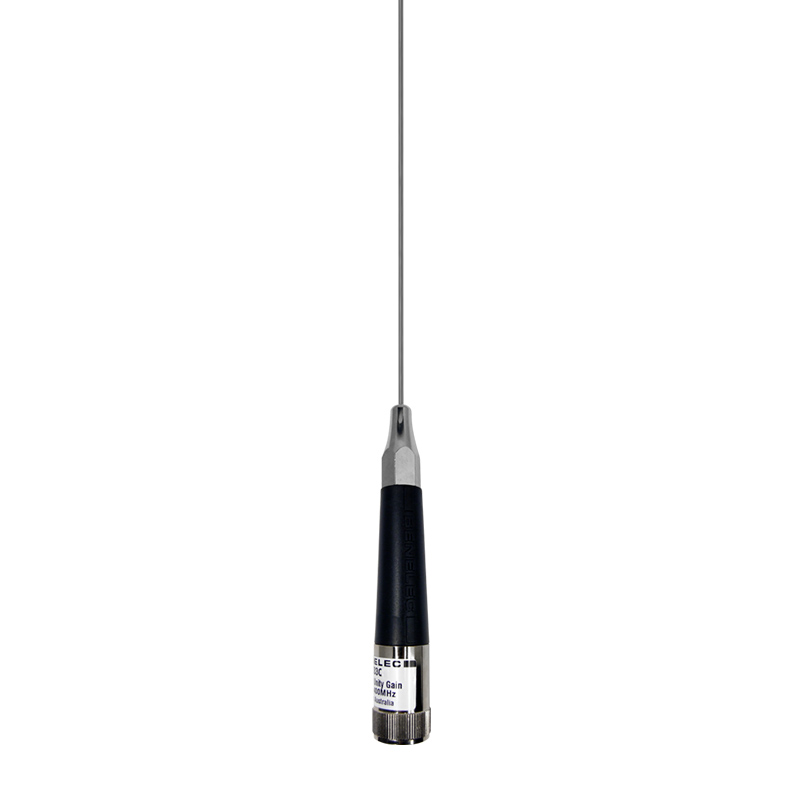

Benelec UHF Mobile ½ Wave Antenna M Base 380-540MHz, UHF Plug
AUD Includes GST
The 02633C is a ground-independent mobile antenna offering 2.15dBi gain, designed for cut-to-tune operation within the 380–540 MHz band. Engineered for consistent performance, it delivers gain on the horizon across the entire frequency range. Optimised for use with the 10109S UHF M/SO239 Base & Lead, this antenna achieves a VSWR of less than 1.5:1 across the full designated band.
[shipping_message]
We’re currently enabling online payment and shipping.
Shipping available:
- Description
- Specifications
Description
Benelec UHF Mobile ½ Wave Antenna M Base
380-540MHz | UHF Plug
FEATURES
- Removable antenna
- Flexible, removable, polyolefin-covered stainless-steel radiator
- Tuneable across the band 380-540 MHz
- Heavy-duty matching section
- Durable materials
- Designed and manufactured in Australia
APPLICATION
Tuneable mobile coverage within the 380- 540MHz band.
WARRANTY
3-Year Warranty
(Refer to Benelec Terms and Conditions)
| Frequency | 380-540MHz tuneable |
| Gain | 2.15dBi |
| Bandwidth | 15-44MHz <1.5:1, 30-90 MHz <2.0:1 |
| Impedance | 50 Ω nominal |
| Polarisation | Vertical |
| Radiation | Omni directional |
| Termination | UHF plug |
| Power Rating | 50 W |
| Base Material | Delrin, Stainless Steel, Chrome Plated Brass |
| Length | Frequency Dependent |
| Net Weight | 160 g |
